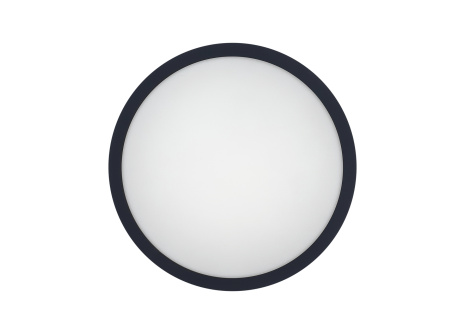

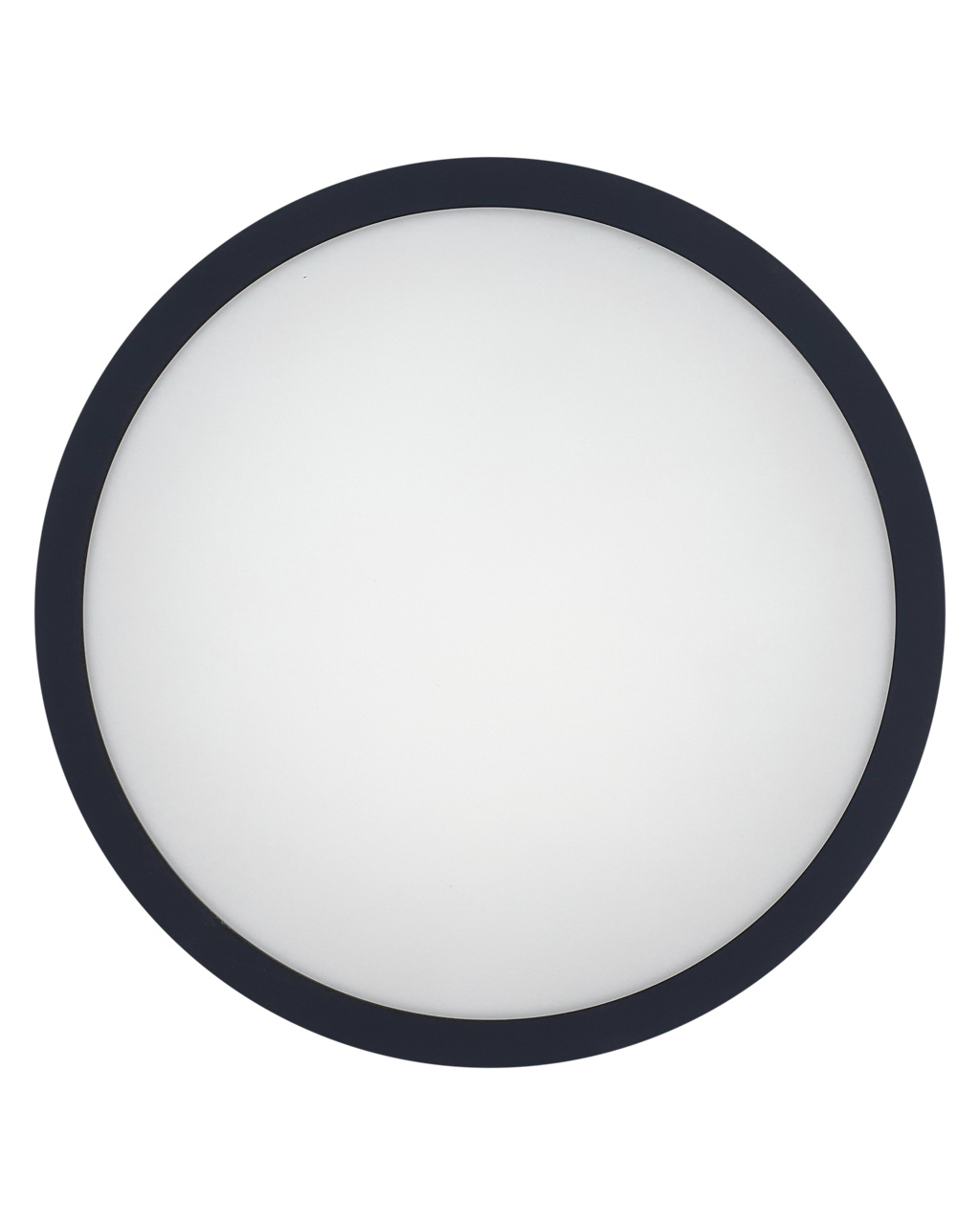

LED ceiling CCT light with motion sensor TR-261MR - ELLÉS 24W 2400lm ø26x5.5cm Trixline

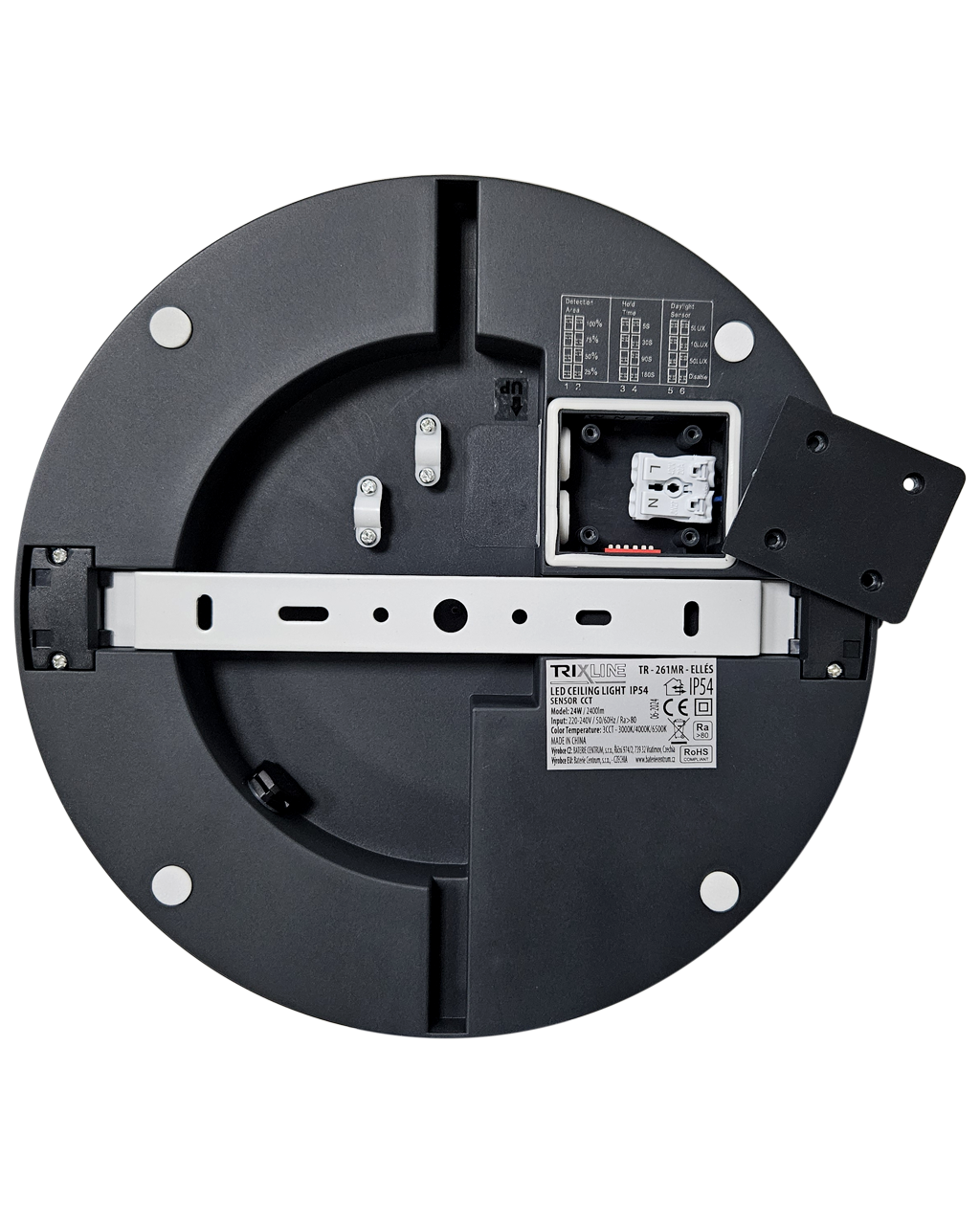

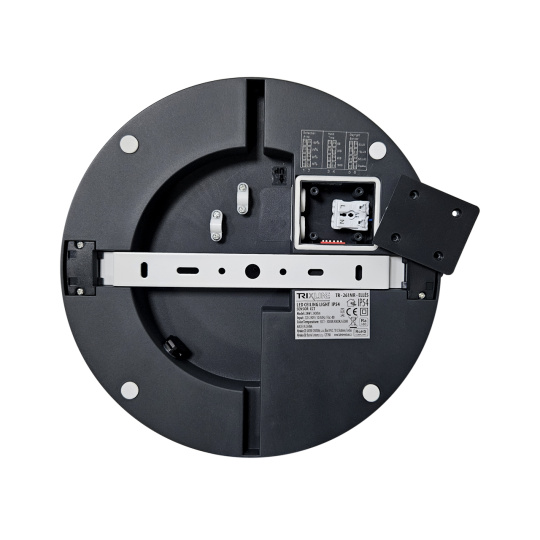

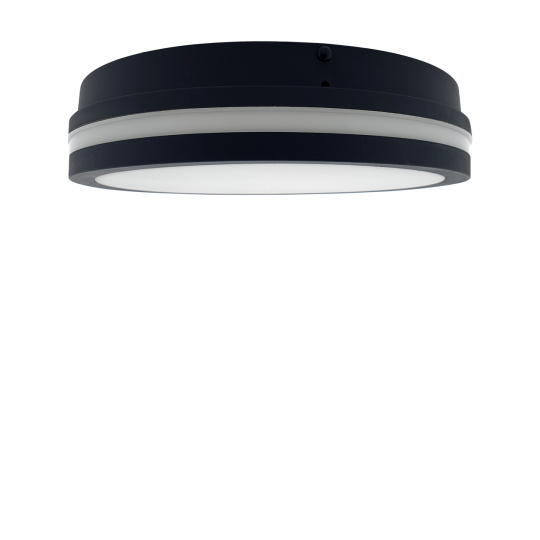

Modern and powerful LED CCT ceiling light TR-261MR Trixline - ELLÉS with microwave motion sensor provides high-quality and even lighting with a strength of 2400 lumens.Adjustable CCT allows the selection of warm, neutral, or cool white light (3000K/4000K/6500K) for optimal adaptation of the room's atmosphere. Pleasant and efficient lighting that meets your aesthetic and practical requirements.The light fixture is equipped with an adjustable motion sensor that automatically turns on the light when motion is detected. The motion sensor and light color are adjusted on the back of the light, after unscrewing the rear cover using sliders. The ELLÉS light fixture can be installed in various locations due to its universal features and IP54 rating, which ensures protection against dust and splashing water.

Suitable spaces for installing the light fixture include:

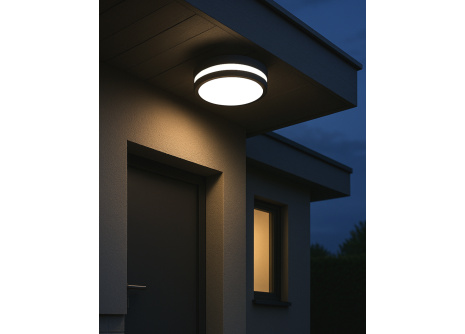

  • Hallways and entryways – automatic lighting upon arrival thanks to motion sensor
  • Bathrooms – moisture resistance ensures safe use
  • Utility rooms – ideal for spaces where you need practical and reliable lighting
  • Garages and workshops – motion detection ensures lighting upon arrival or during work
  • Staircases – automatic activation increases safety

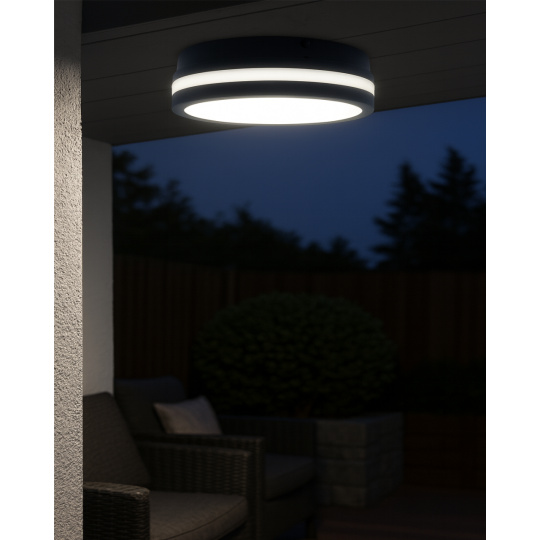

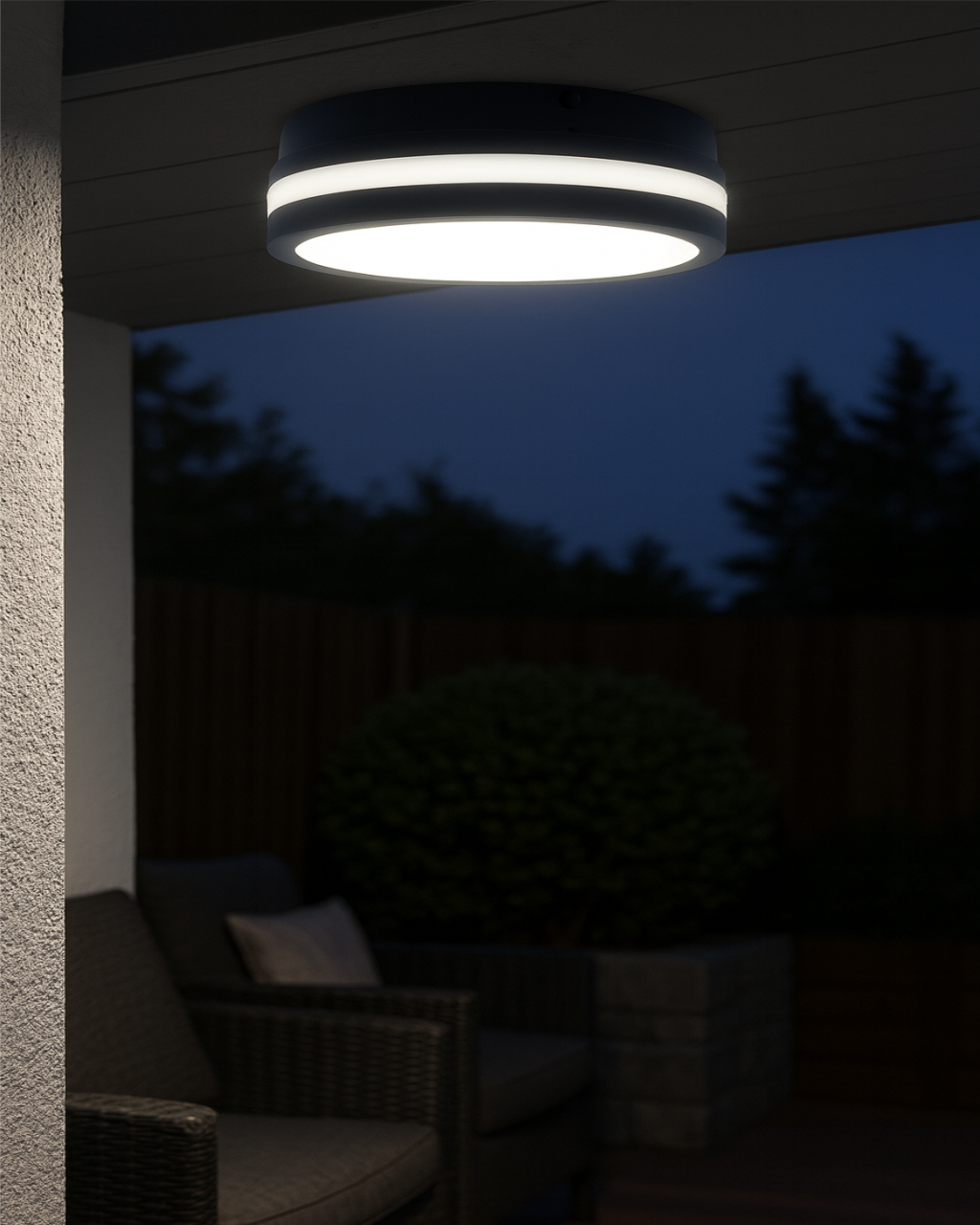

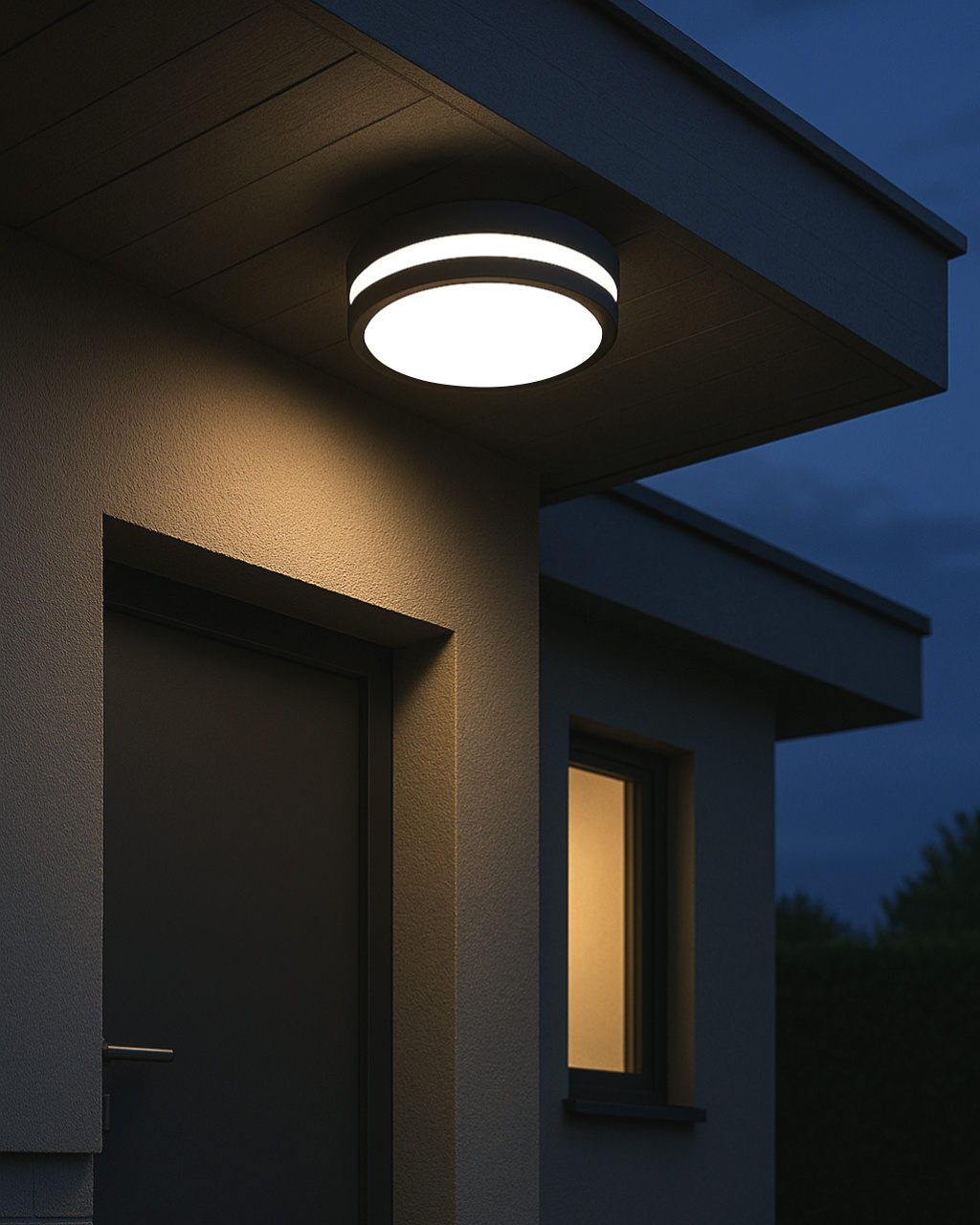

  • Covered outdoor areas (e.g.
  • terraces, entrance shelters) – IP54 protection allows for outdoor use if the location is partially covered

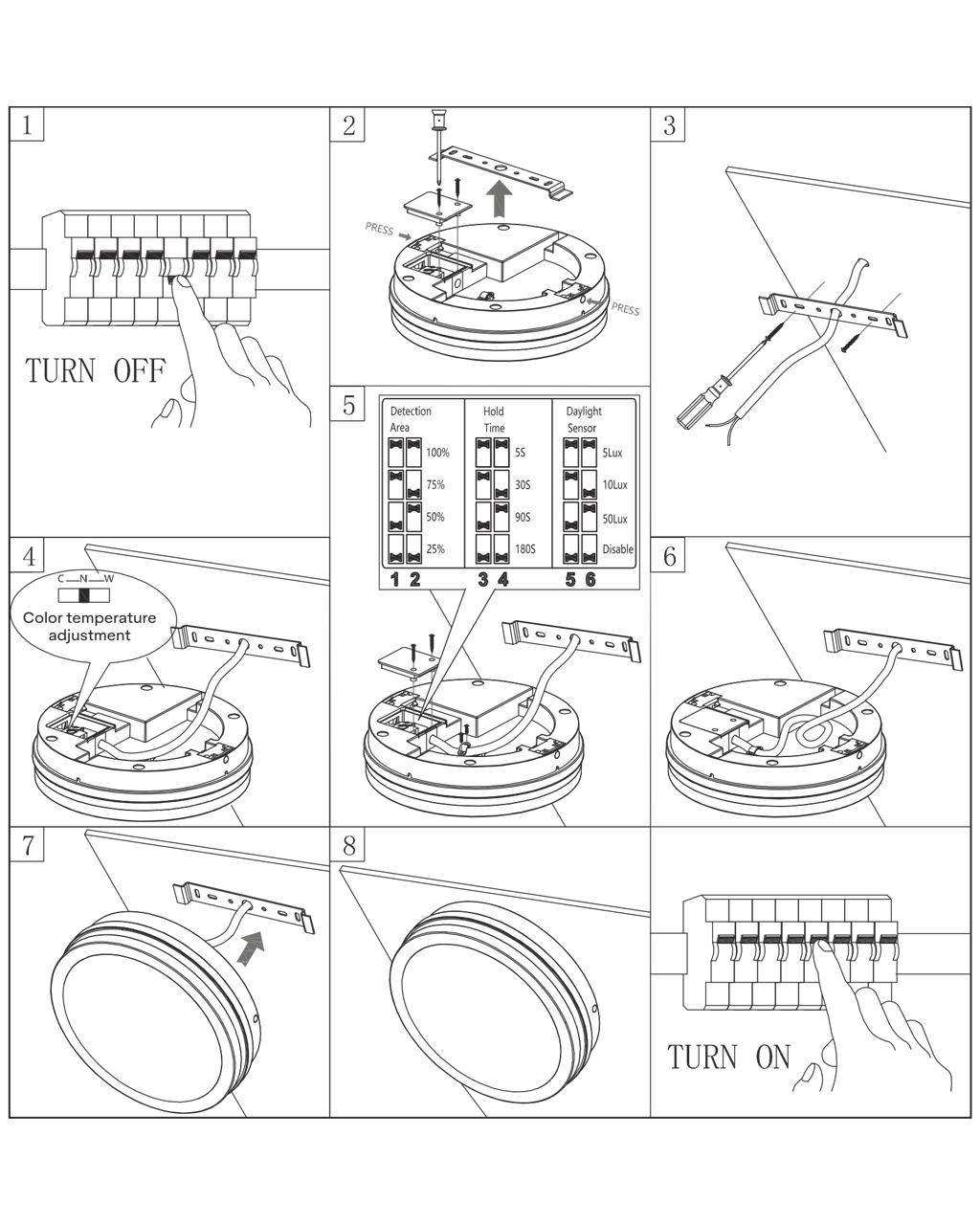

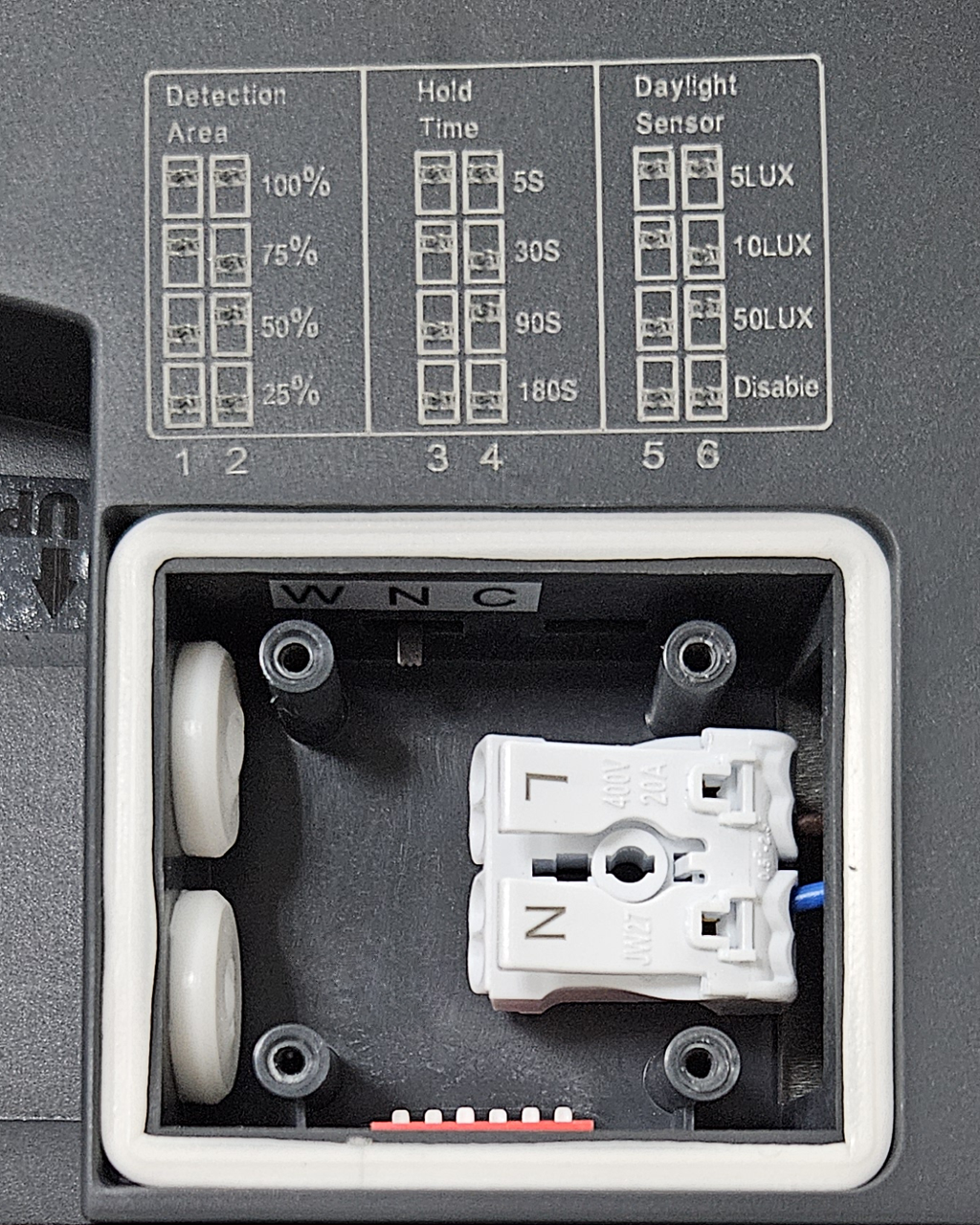

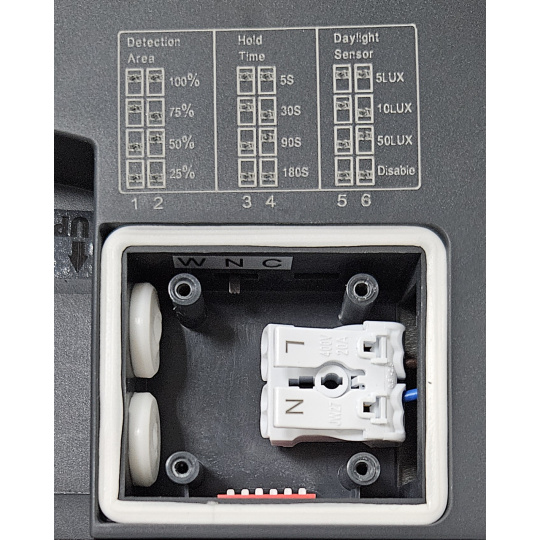

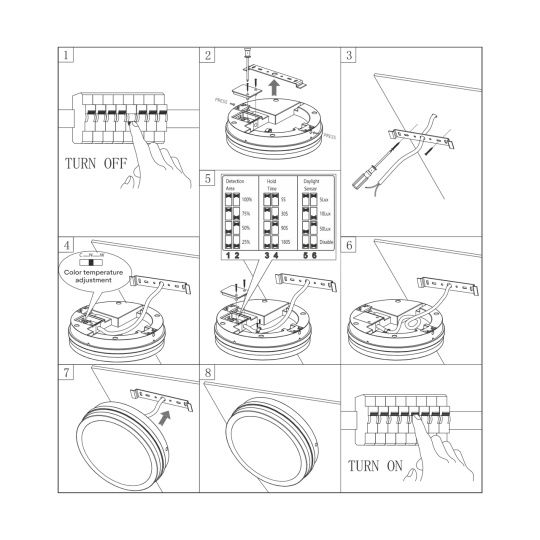

Motion sensor settings:

1. Area of detection:

The detection distance setting allows you to adjust how far the sensor will detect movement.

  • 25% = 2m – Short distance, suitable for small spaces.
  • 50% = 3m – Medium range, ideal for corridors or smaller rooms.
  • 75% = 4m – Longer range, suitable for larger rooms.
  • 100% = 6m – Maximum range, ideal for larger spaces such as garages or warehouses.

2. Lighting time:

Setting the duration for which the light remains on after motion is detected.

  • 180s – Longer lighting (e.g. for longer passages).
  • 90s – Medium setting, suitable for regular rooms.
  • 30s – Short lighting for energy saving.
  • 5s – The shortest setting, ideal for quick passes.

3. Daylight sensor:

Adjusts whether and when the sensor responds to movement depending on the ambient lighting.

  • Disabled – The sensor ignores daylight and turns on the light whenever motion is detected.
  • 50 lux – The light turns on only in low ambient light.
  • 10 lux – Reacts only under very low lighting.
  • 5 lux – Sensor activation occurs only in near-complete darkness.

Key features:

  • Power: 24W
  • Luminous flux: 2400lm

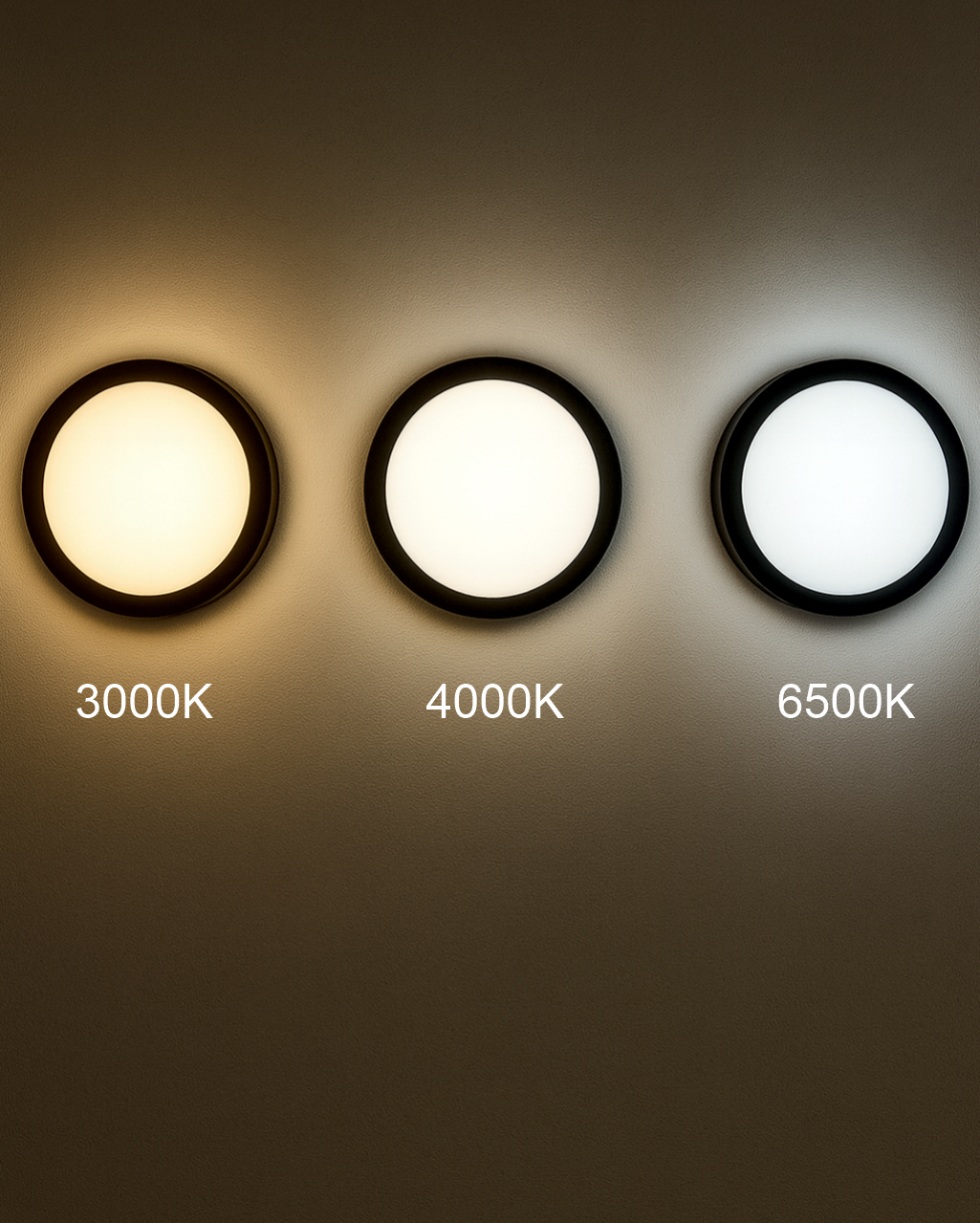

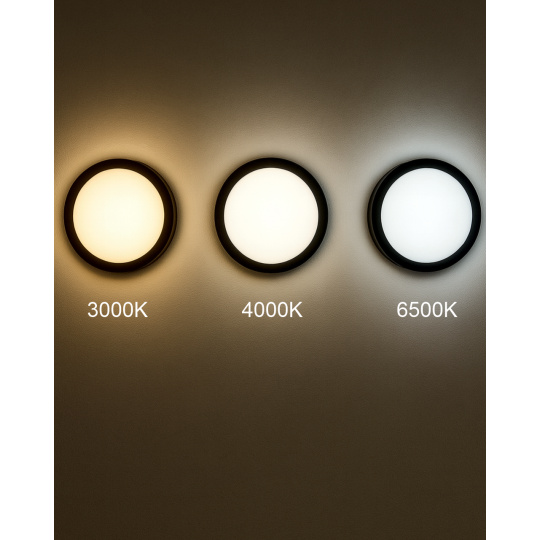

  • Light temperature: CCT 3000/4000/6500K - adjustable warm, neutral, or cool white
  • Color Rendering Index (CRI): ≥80
  • Beam angle: 120°
  • Lifespan: 25,000h
  • Operating temperature: -20°C to +55°C (ideal for indoor and partially protected outdoor spaces)
  • Motion sensor control: yes
  • Sensor type: microwave
  • Detection range: 360°
  • Material: PP plastic
  • Protection rating: IP54 (protection against dust and splashing water)
  • Color: anthracite
  • Voltage: 220-240V/AC
  • Frequency: 50/60Hz
  • Dimensions: ø260x55mm
  • Net weight of the fixture: 550g + 4g screws

Advantages of the fixture:

  • Adjustable light temperature: Customize the atmosphere as needed, whether you need warm light for relaxation or bright light for work.
  • Durability and long lifespan: With an IP54 rating, the light fixture is suitable for rooms with increased humidity or semi-outdoor spaces.
  • Energy saving: LED technology ensures significantly lower consumption compared to traditional bulbs.
  • Easy Installation: Quick and easy assembly thanks to the thoughtful design.
  • Automatic lighting: The microwave motion sensor detects movement in all directions (360°), saving energy and enhancing comfort.


Package contents: light TR-261MR - ELLÉS, user manual, 2x screw 3cm - cross slot

Packaging: 1/10

Package dimensions 1pc (WxHxD): 265x265x60mm
Package weight 1pc: 665g

EAN of carton 10pcs: 8595159885902
Dimensions (WxHxD): 545x320x285mm
Weight N.W. cardboard: 6.7kg
Weight G.W. cardboard: 7kg


Informace o bezpečnosti výrobku. Odpovědná osoba pro EU : BATERIECENTRUM s.r.o., Michálkovická 2031/109C , 710 00 Ostrava / Czech Republic / IČO: 25361848, info@bateriecentrum.cz
ParametersAdd to Compare
Power (W)
24
Luminous flux (lm)
2400
Light temperature (K)
3000, 4000, 6500
Color
anthracite
Power supply
220-240V
Dimensions
260x260x55 mm
Motion sensor
Yes
IP coverage
54
Surface
Dim
Material
PP
Luminaire type
CCT LED light
Face
Square
Method of installation
ceiling
Mark
Qtec
