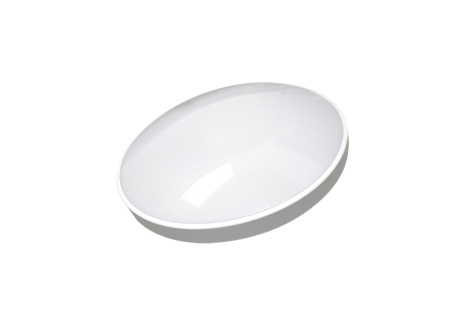

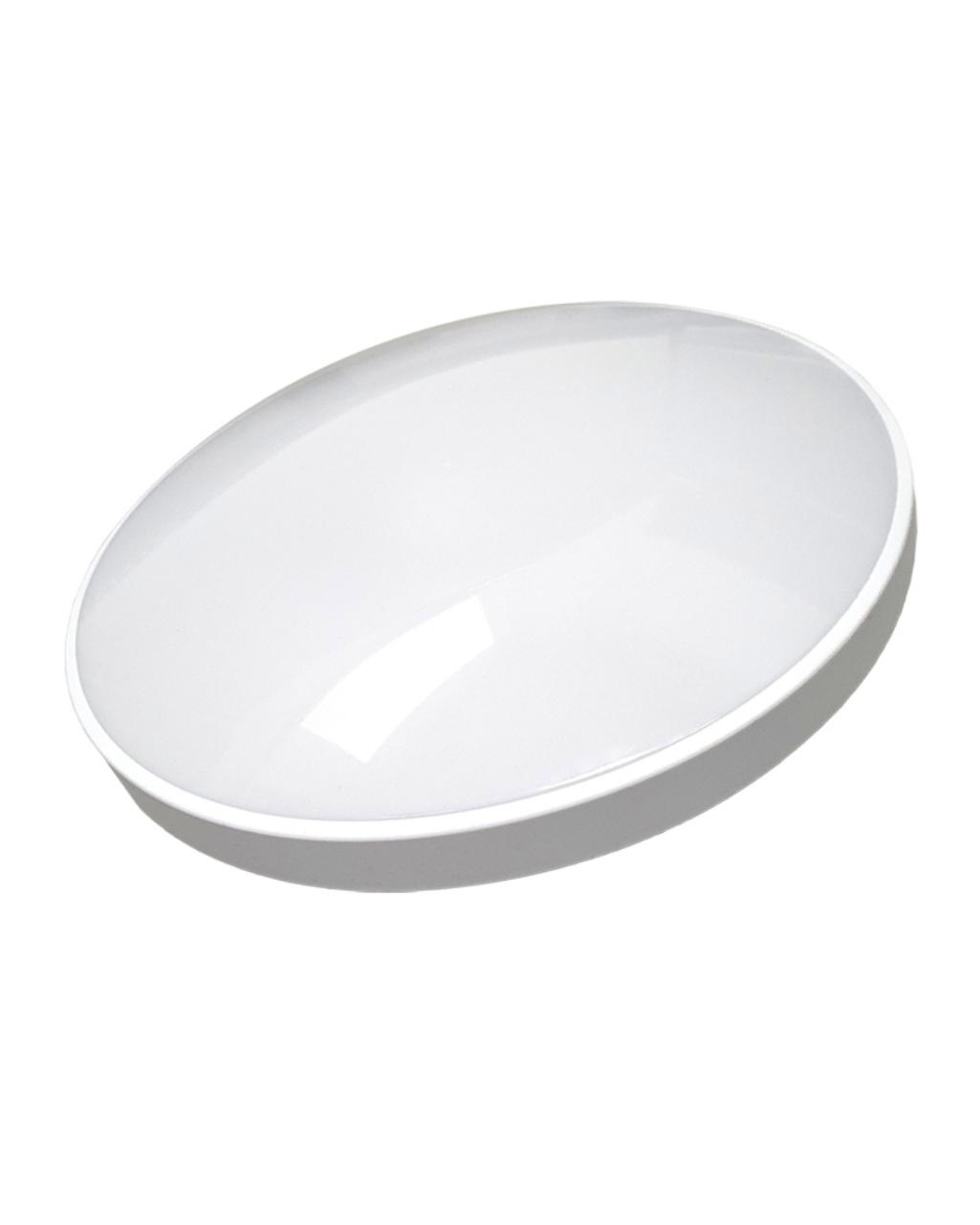

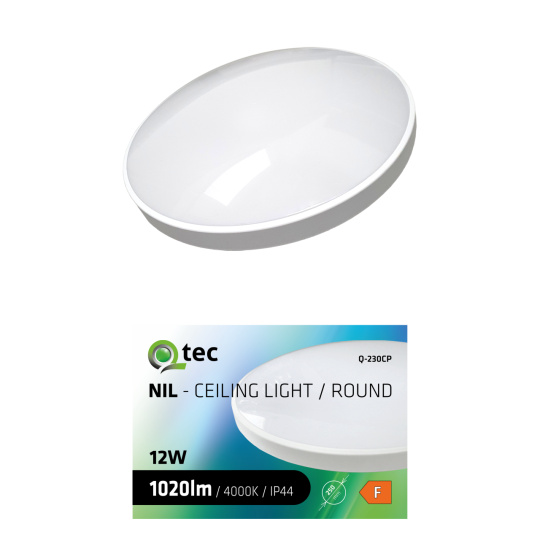

LED lamp QTEC Q-230CP 12W 4000K ø25cm/circular white
Key properties:
- Power: 12W
- Luminous flux: 1020lm
- Light temperature: 4000K (neutral white)
- Material: PP (plastic)
- Shape: round

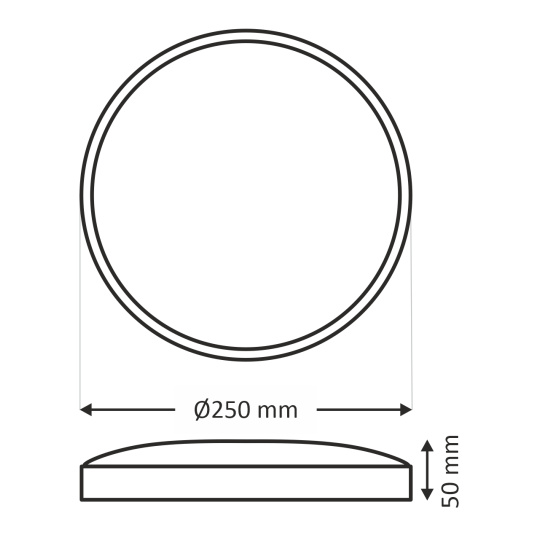

- Outer dimension of light: ø250x50mm

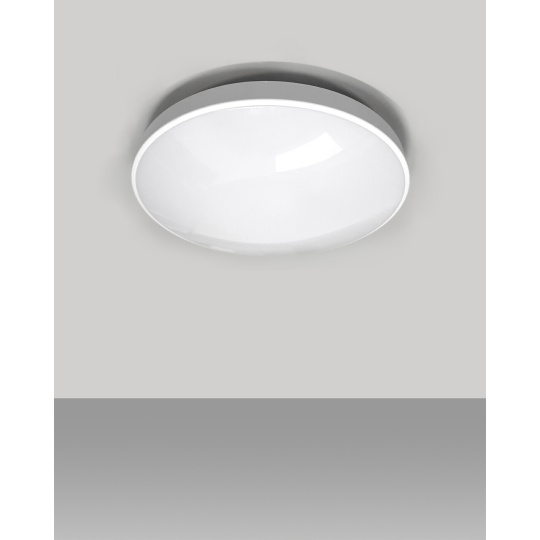

- Mounting method: flush-mounted
- White color
- Dimming option: no
- Radiation angle: 120°
- Color rendering index: Ra ≥80
- Protection: IP44
- Voltage: AC 220~240V
- Frequency: 50/60Hz
- Weight without packaging: 265g

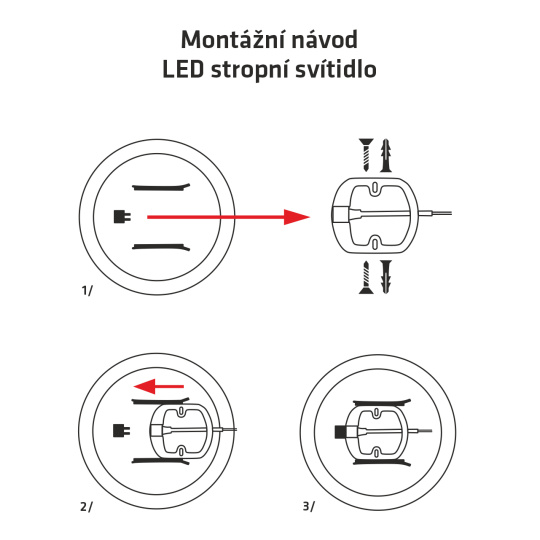

Construction:
- Before installation, make sure that the circuit breakers are turned off and the mains supply is de-energized.

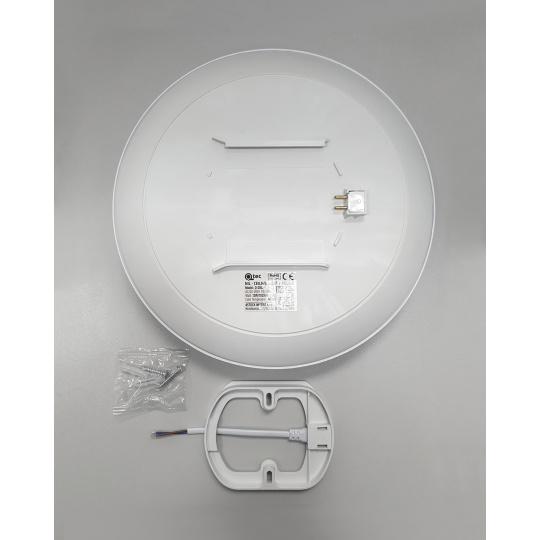

- Attach the light holder to a solid surface, e.g. on the ceiling, wall, etc. (2 screws, 2 dowels are part of the package).
- Connect the power cord to a 220~240V power supply.
- Install the light into the bracket.
- Make sure the light is securely attached.
- Test for proper functionality by turning it on.
Packing: 1/5/40
Package size 1pc (WxHxD): 250x250x60mm
Package weight 1pc: 280g

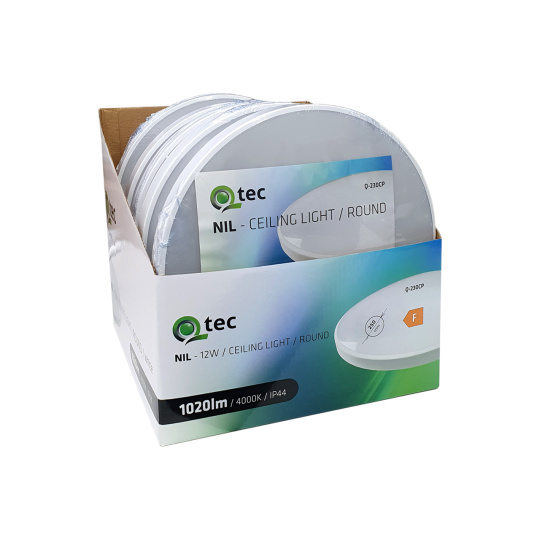

EAN display 5 pcs: 8595159880433
Display weight: 1687g
Dimensions (WxHxD): 255x255x265mm
EAN of carton 40 pcs: 8595159880440
Weight G.W. carton: 13.5 kg
Weight N.W. carton: 10.5 kg
Dimensions (WxHxD): 550x535x525mm
Informace o bezpečnosti výrobku. Odpovědná osoba pro EU : 4 STOCK IMPORT s.r.o., Michálkovická 2031/109c, Ostrava, 710 00 / Czech Republic / IČ: 01640780, info@bateriecentrum.cz
ParametersAdd to Compare
Power (W)
12
Luminous flux (lm)
1020
Light temperature (K)
4000
IP coverage
44
Power supply
220-240V
Color
White
Downloadable documents
Safety information (PDF)LED lamp QTEC Q-230CP 12W 4000K ø25cm/circular white
