TR-10A LED MODULE 5W 4200K 220-240V TRIXLINE

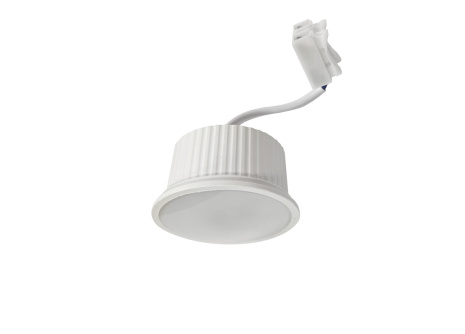

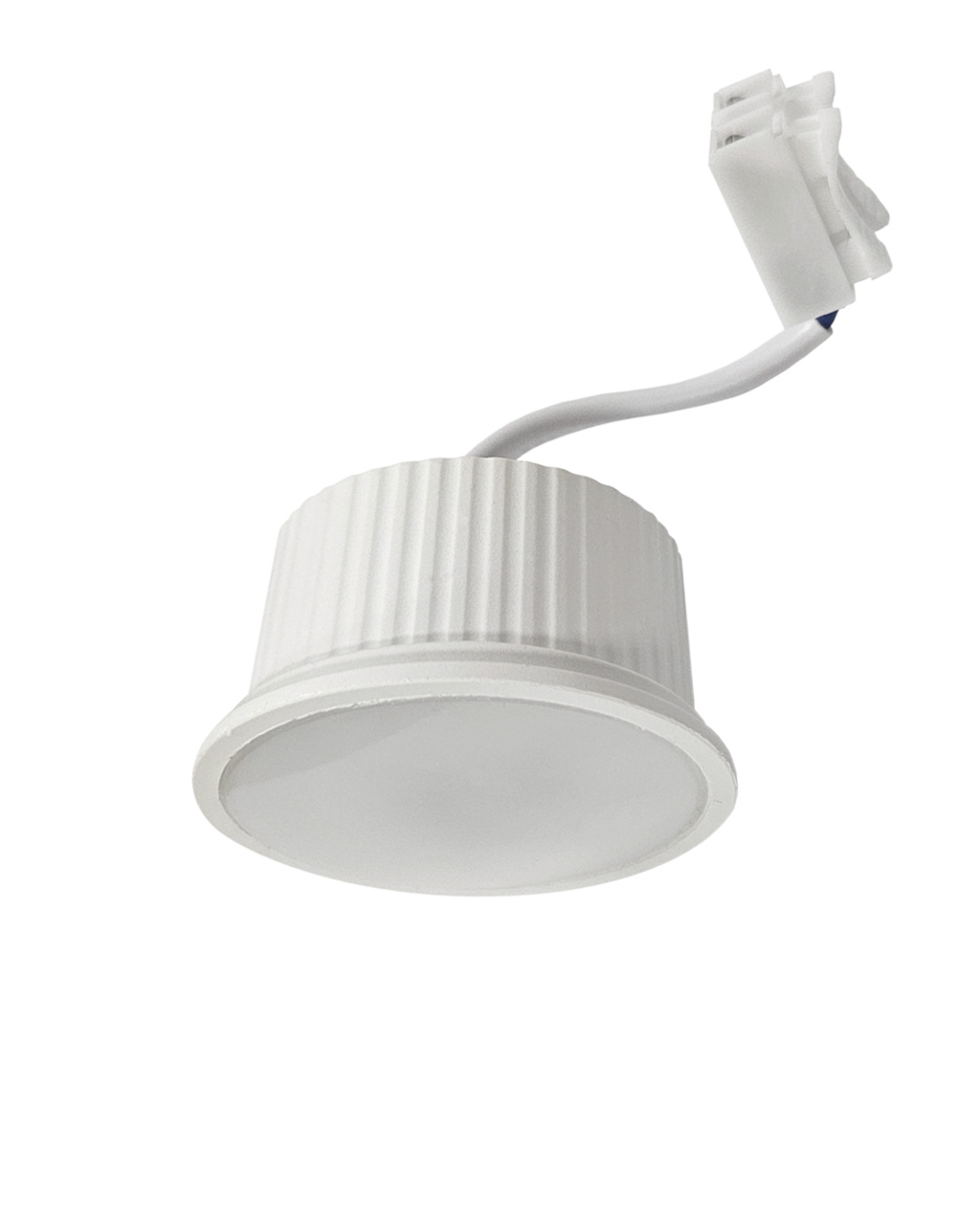

TR-10A LED module TRIXLINE represents a replacement for light sources with a GU10 threaded base. Thanks to its low-profile design, it is an excellent solution for installations with limited space. With a height of 25mm, it can be placed even in the lowest surface-mounted lights. Suitable for recessed lighting where there is not enough space between the ceiling and the roof for a standard GU10 source.The module connects directly to the electrical installation using a cable that includes a WAGO connector for easy and safe connection.

Technical specifications:

• Power consumption: 5W
• Luminous flux: 425lm
• Light temperature: 4200K (neutral white)
• Beam angle: 120°
• Voltage: 220-240V AC / 50-60Hz
• Material: Alum+PC
• Lifespan: 25,000 hours
• Temperature range: -20 °C to +40 °C
• Color rendering index (CRI): ≥80Ra
• Module dimensions: ø50x25mm
• Net weight: 26g

Main advantages:

✅ Compact dimensions – suitable even for installations with minimal mounting space
✅ Instant start – LED technology ensures lighting without delay (<0.02 s)
✅ True color rendering – CRI >80 allows natural display of shades
✅ Energy saving – lower electricity consumption with a positive impact on the environment
✅ Easy installation – direct connection without the need for an additional socket



Packaging: 1/10/100

Package dimensions 1pc (WxHxD): 52x60x52mm
Package weight 1pc: 32g

EAN 10pcs: 8595159888583
Dimensions (WxHxD): 162x122x52mm
Display weight: 323g

EAN of carton 100pcs: 8595159888354
Dimensions (WxHxD): 550x140x280mm
Weight G.W. cardboard: 3.2kg
Weight N.W. cardboard: 2kg

Informace o bezpečnosti výrobku. Odpovědná osoba pro EU : BATERIECENTRUM s.r.o., Michálkovická 2031/109C , 710 00 Ostrava / Czech Republic / IČO: 25361848, info@bateriecentrum.cz
