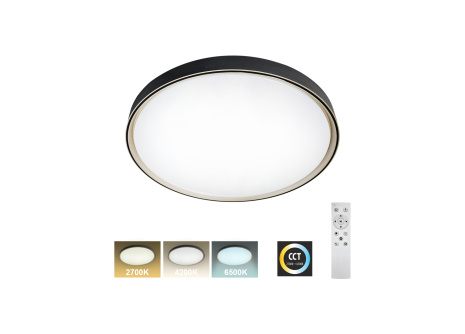

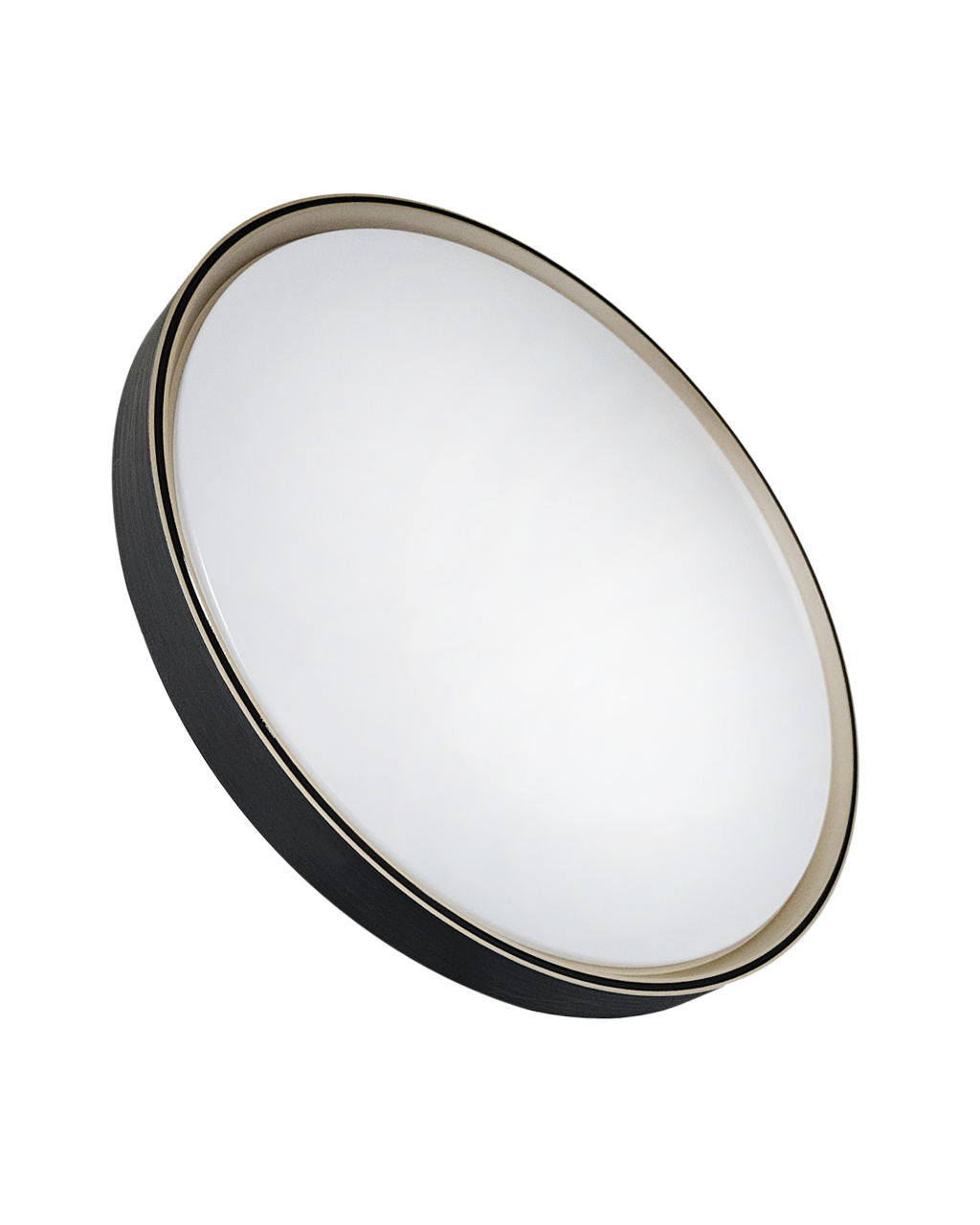

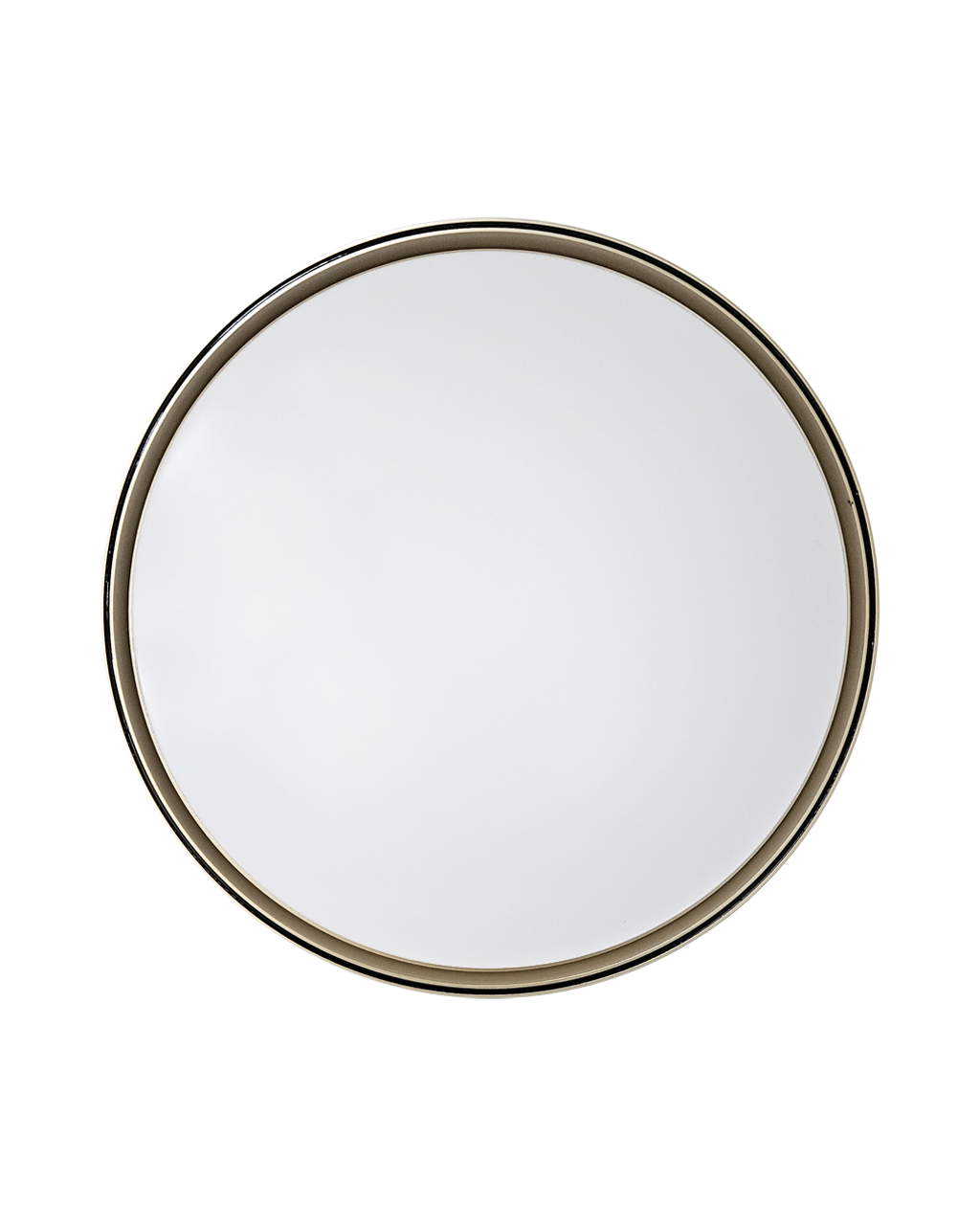

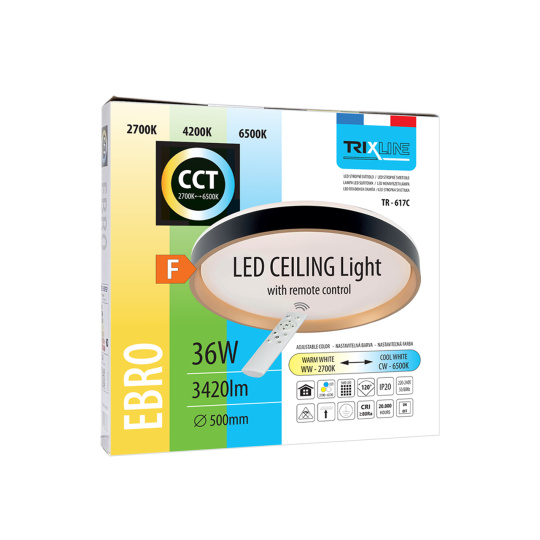

LED ceiling light TR-617C - EBRO 36W 3420lm ø50cm CCT + Trixline controller

Outer dimension of light: ø500x85mm... more
Description and parameters

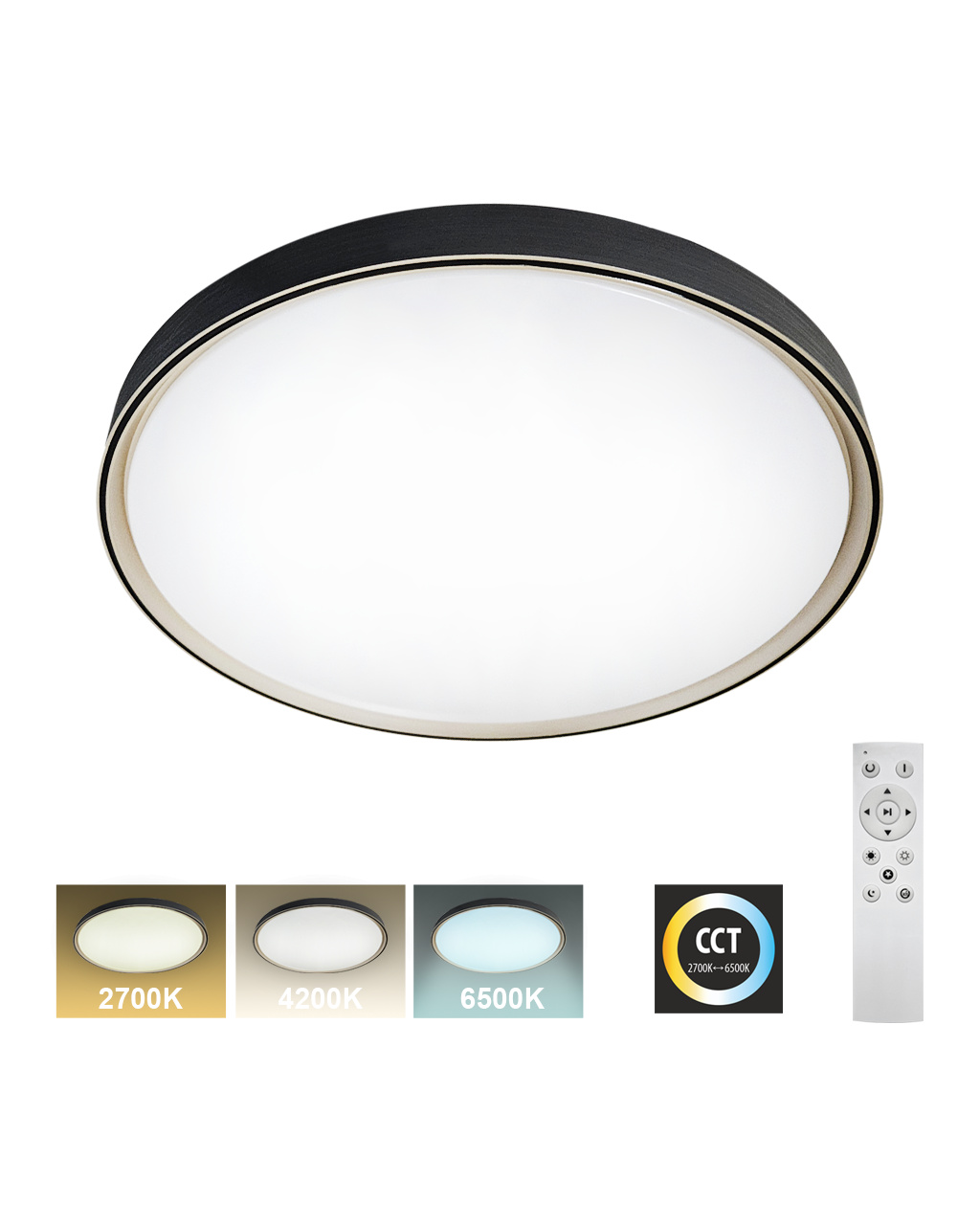

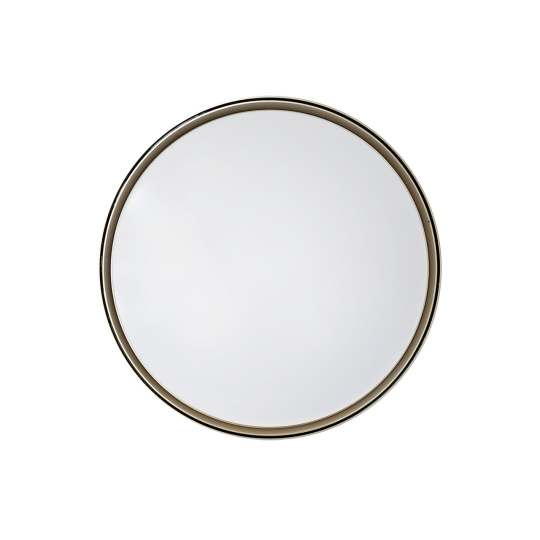

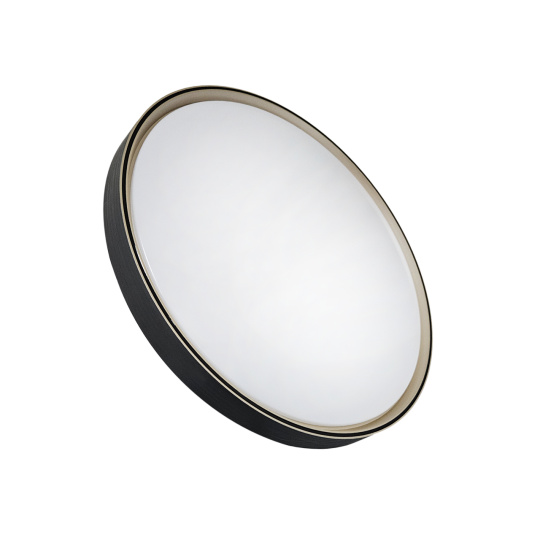

LED ceiling light TR-617C - EBRO 36W 3420lm ø50cm CCT + Trixline controller

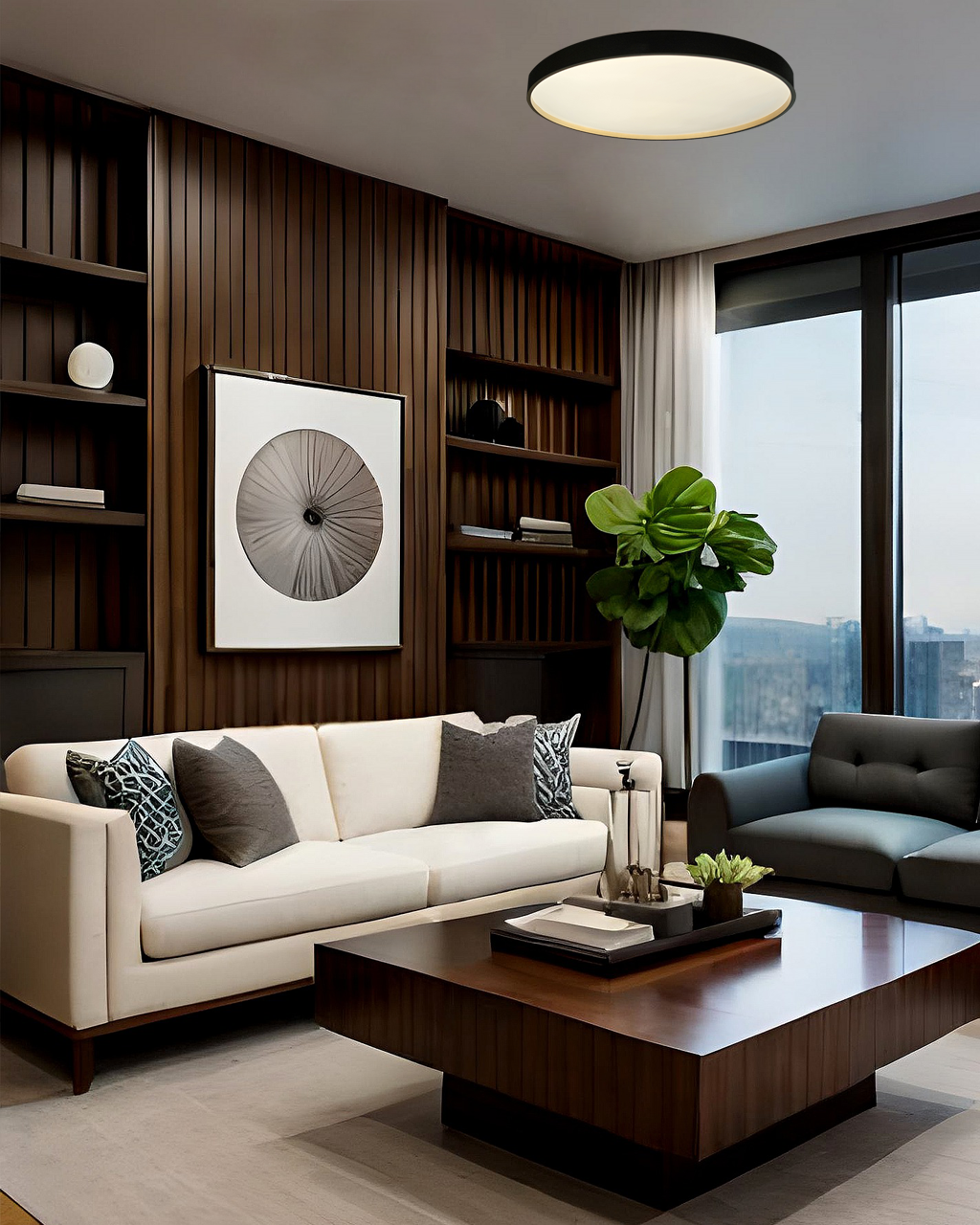

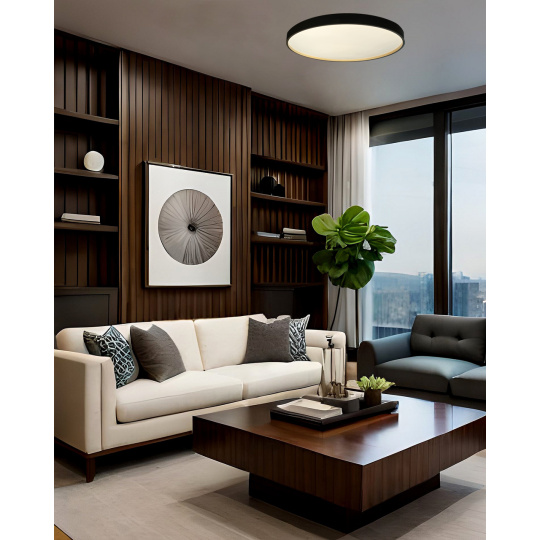

LED ceiling lamp TR-617C - EBRO Trixline in gold color is intended for indoor spaces such as living rooms, bedrooms, halls, offices, corridors and similar places. Using the included controller, you can switch between three light temperatures ranging from 2700K to 6500K , which can be dimmed as needed to create a pleasant atmosphere. At maximum dimming, consumption drops to just 6W from the original 36W, which guarantees energy savings.Another option on the remote control is the night mode and the 30-second function, after which the LED light turns itself off. After switching off, the lamp remembers the last set mode , which ensures convenient and intuitive use.



Key properties:

Power: 36W
Luminous flux: 3420lm

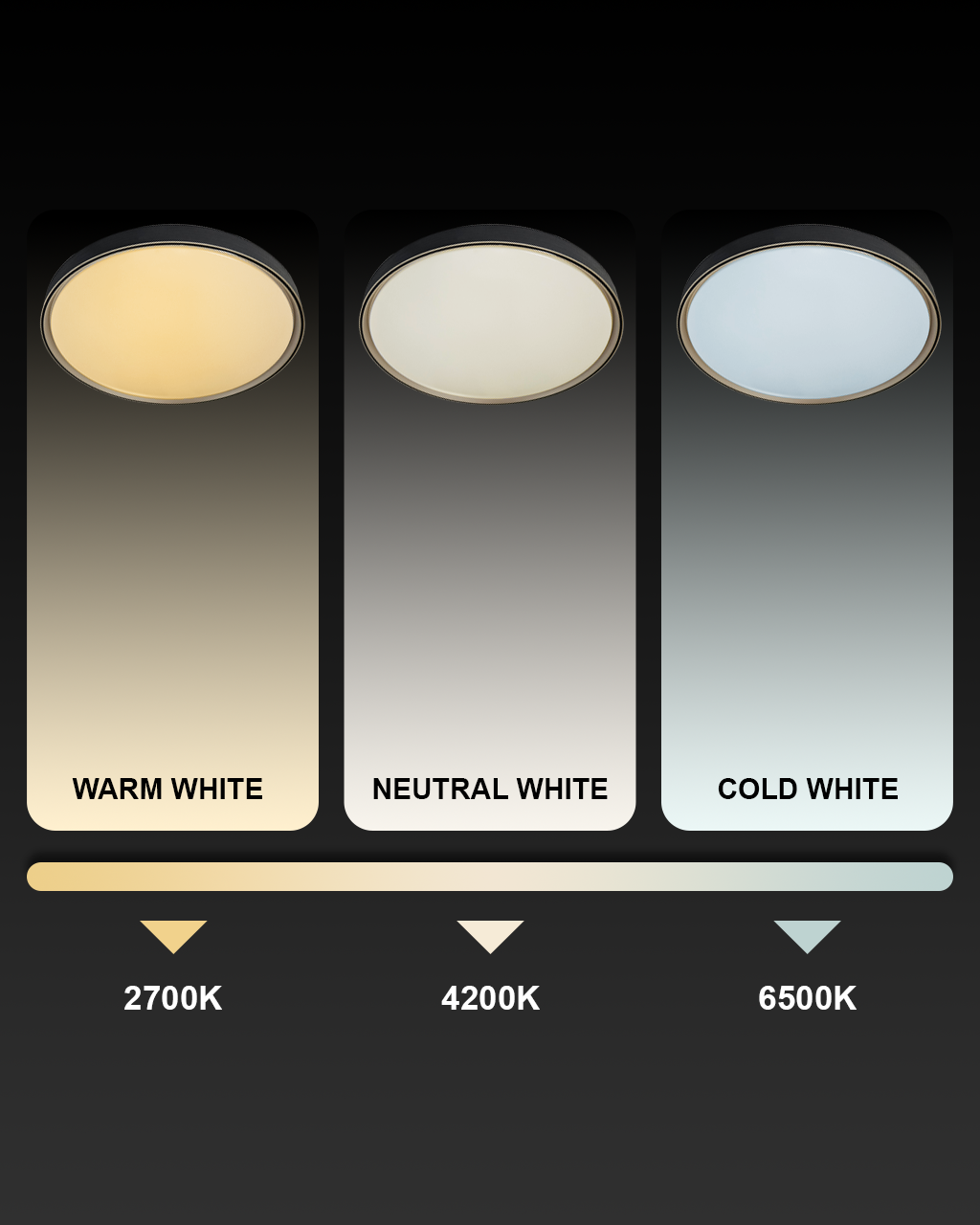

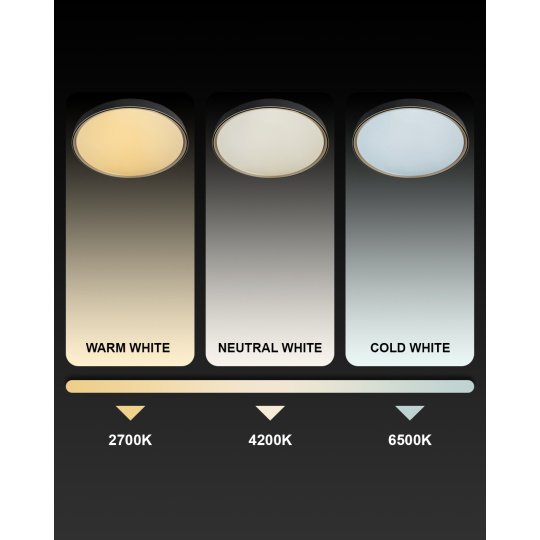

Light temperature: 2700K - 6500K
Material: PP (plastic) + metal
Shape: circle

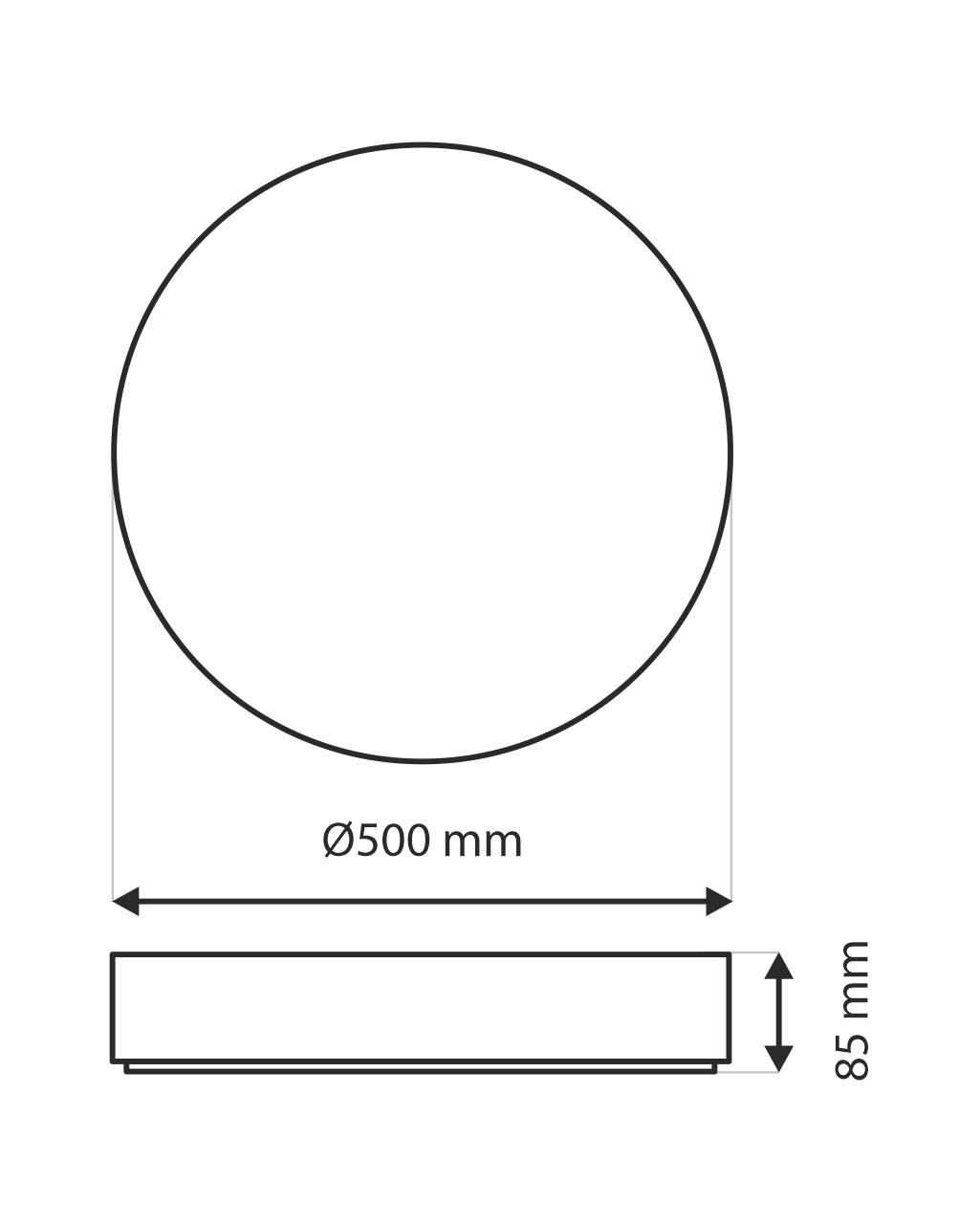

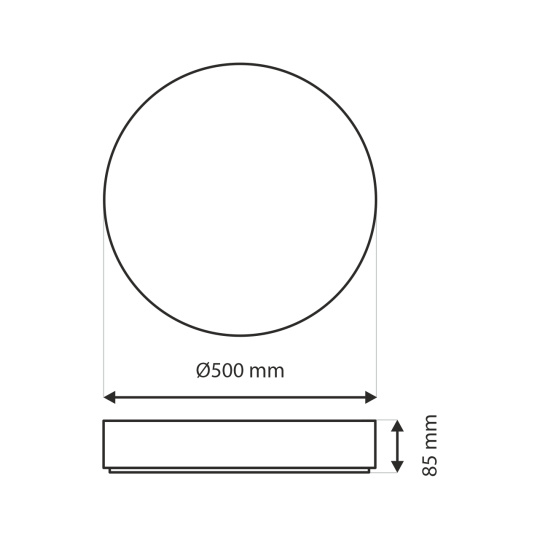

Outer dimension of light: ø500x85mm
Mounting method: flush-mounted
Color : black gold
Dimming option: yes
Radiation angle: 120°
Color rendering index: Ra ≥80
Protection: IP20
Voltage: AC 220~240V
Frequency: 50/60Hz

Package contents: LED ceiling light TR-617C - EBRO, controller (2xAAA battery not included), 4x screws (length 2.5cm, cross groove), 4x dowels (length 2.5cm), instructions for use

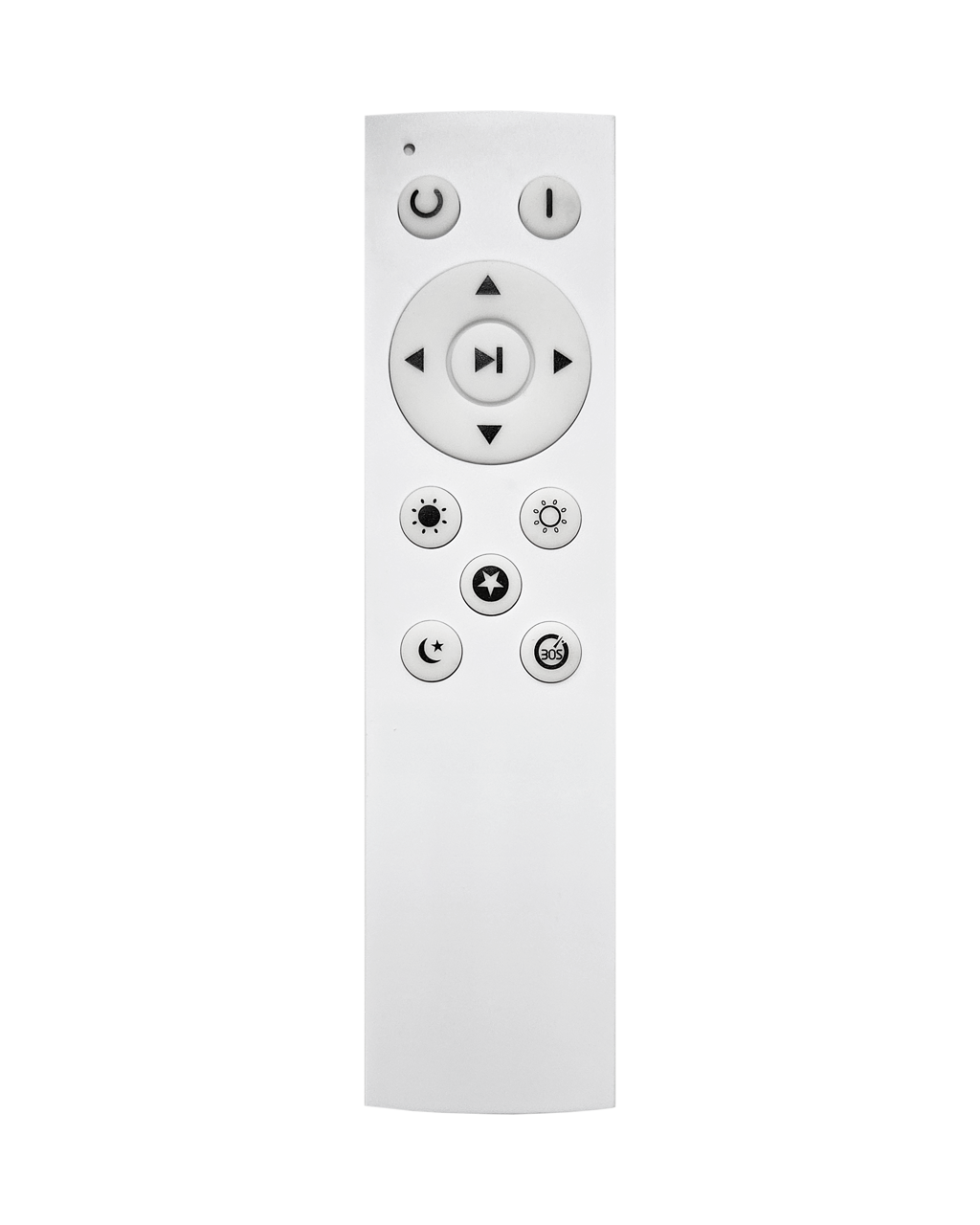

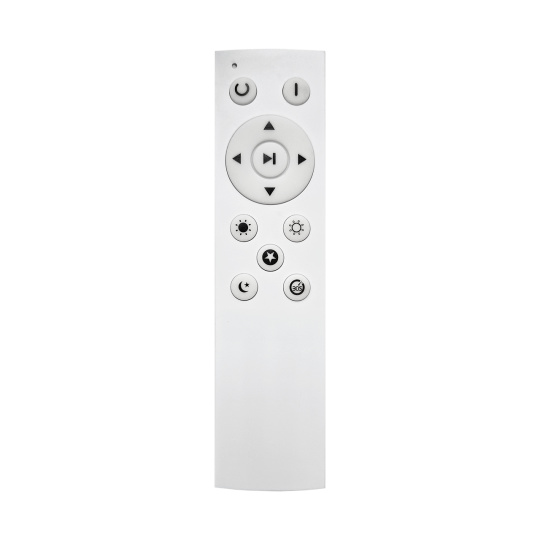

Description of buttons on the controller:

Turn on Change in light temperature
Shutdown Warm white
Increase brightness Cold white
Decrease brightness Neutral white
White cold treatment Night light
White warm adjustment Timer: after 30 seconds the light turns off

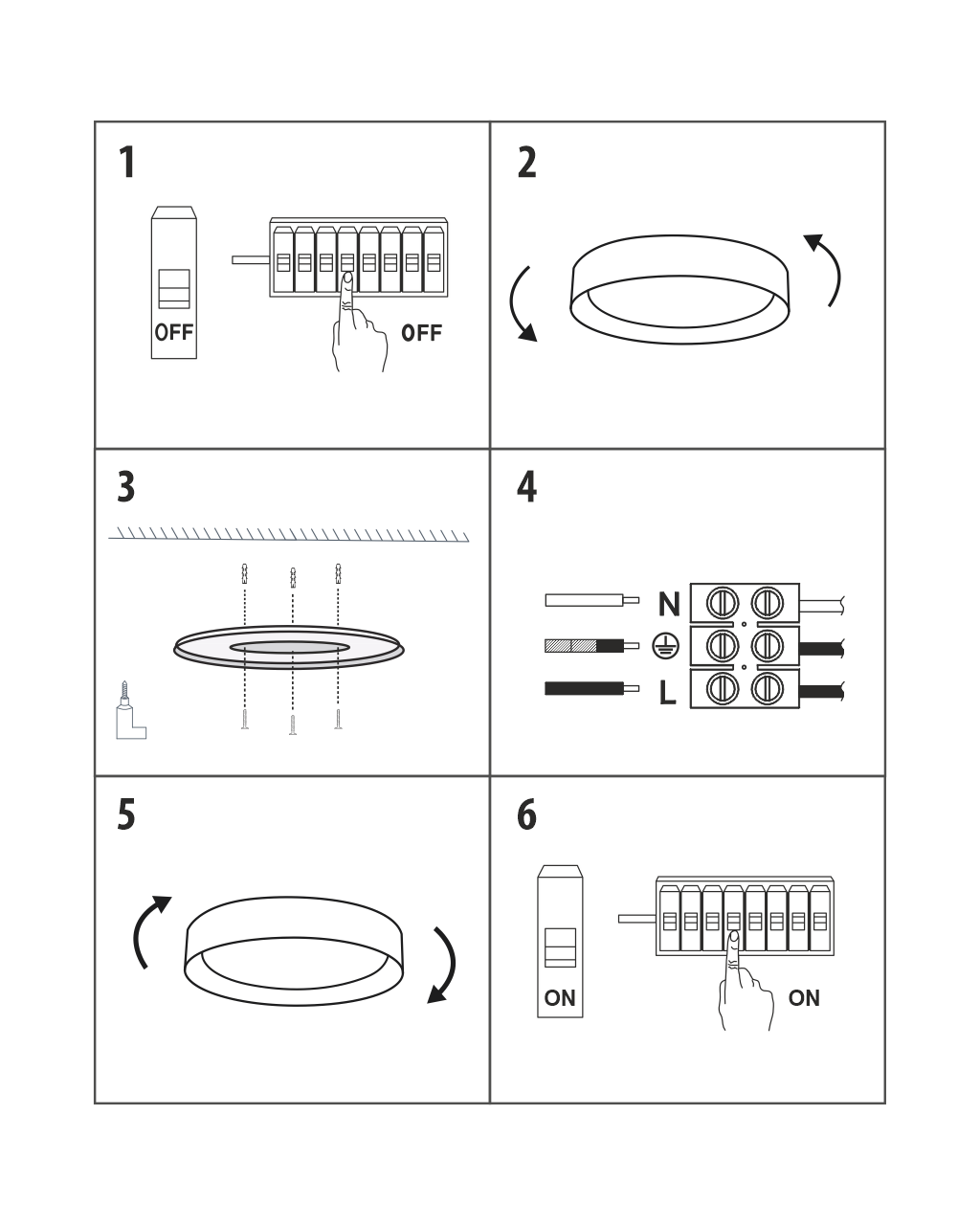

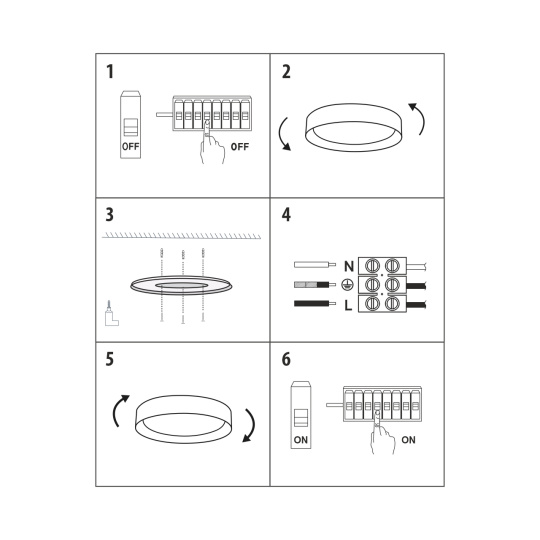

Construction:

  1. Before installation, make sure that the circuit breakers are turned off and the mains supply is de-energized.
  2. Attach the light holder to a solid surface, e.g. on the ceiling, wall, etc. (screws, dowels are part of the package).
  3. Connect the power cord to a 220~240V power supply.
  4. Install the light cover into the bracket.
  5. Make sure the light is securely attached.
  6. Test for proper functionality by turning it on.





Packaging: 1
Dimensions (WxHxD): 540x540x100mm
Weight G.W. carton: 1.72 kg

ParametersAdd to Compare
Power (W)
36
Luminous flux (lm)
3420
Light temperature (K)
2700-6500
Color
black
Power supply
220-240V
Dimensions
500x85 mm
Surface
Dim
Material
Metal + PVC
Luminaire type
CCT LED light
Face
Ring
IP coverage
45
Method of installation
ceiling
Mark
Trixline
