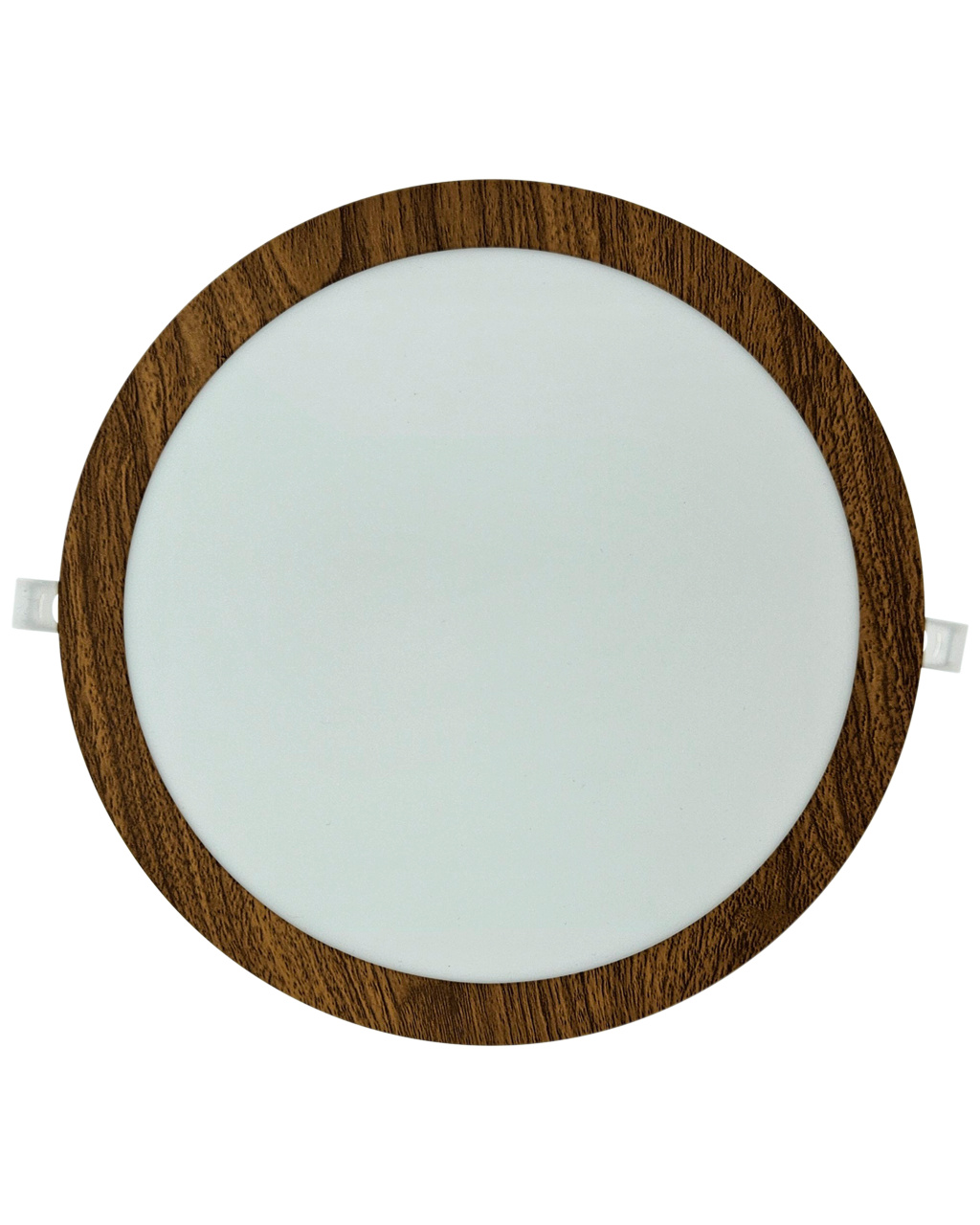

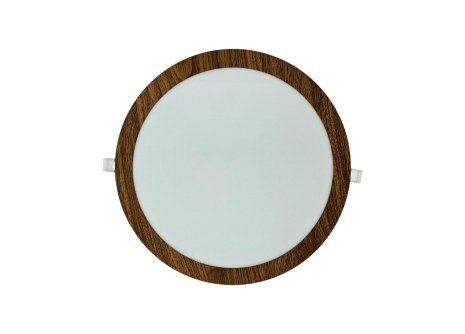

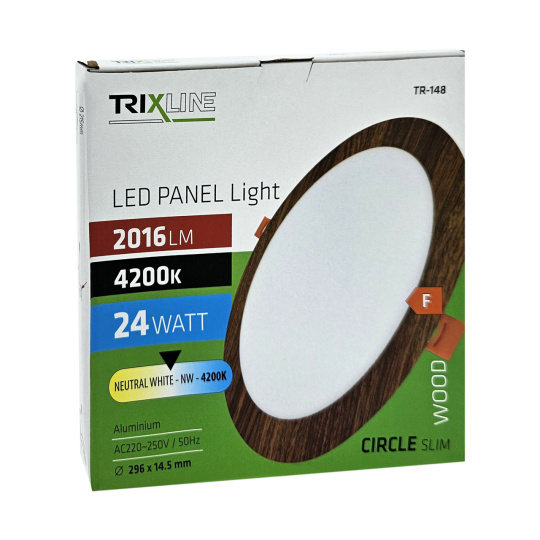

TR-148 LED panel 24W 2016lm 4200K wood decor - circular built-in Trixline

Outer dimension of the light: ø296x14.5mm / Mounting hole: ø281mm... more
Description and parameters

TR-148 LED panel 24W 2016lm 4200K wood decor - circular built-in Trixline

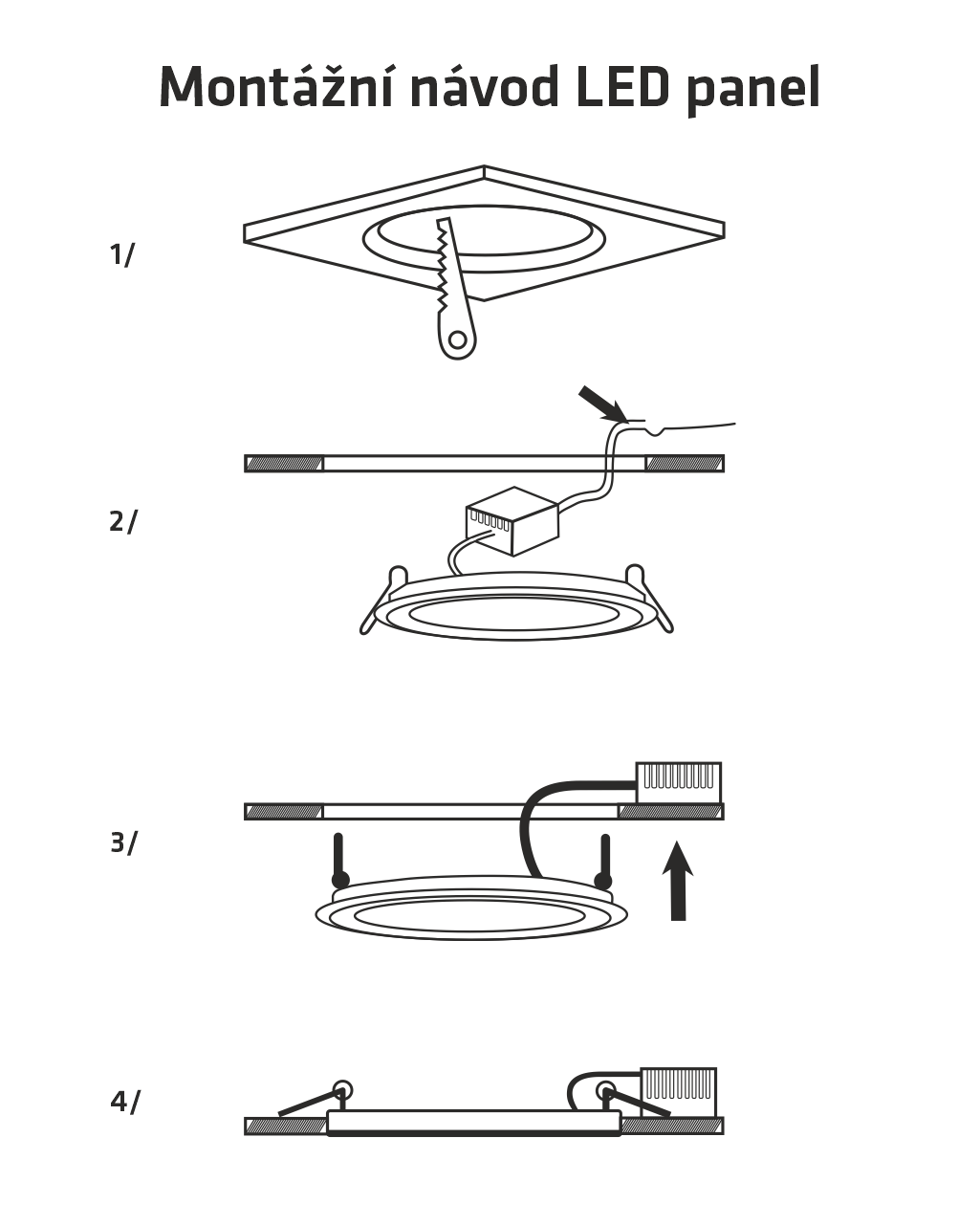

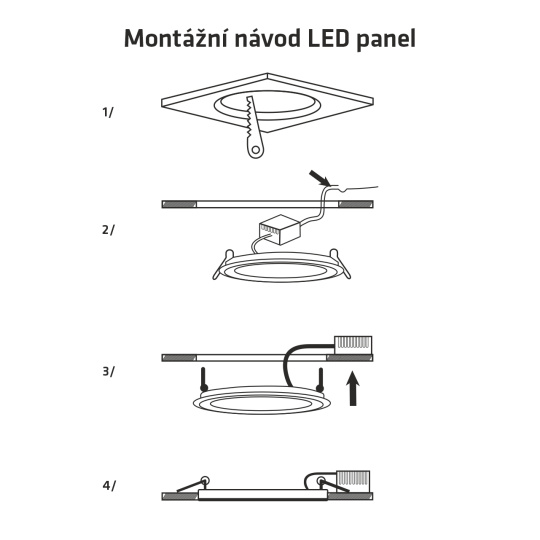

Circular built-in LED panel Trixline TR-148 with a power of 24W with a luminous flux of 2016lm and a neutral white light color of 4200K.Impressive design in wood decor. The panel is made of high-quality aluminum.Thanks to the LED technology used , you can save up to 85% of energy.It is intended for interior use to be embedded in plasterboard with a mounting hole of 28.1 cm in diameter.The outer dimension of the light is ø29.6x1.45cm.Quick and easy installation.

Key properties:

  • Power: 24W
  • Luminous flux: 2016lm
  • Light temperature: 4200K (neutral white)
  • Material: aluminum (Aluminium)
  • Shape: circular (circle slim)
  • Outer dimension of light: ø296x14.5mm
  • Mounting hole: ø281mm (øR -15mm)
  • Mounting method: built-in
  • Color: brown (wood decor)
  • Radiation angle: 120°
  • Color rendering index: Ra ≥80
  • Service life: 50,000h (≤15,000h ON-OFF)
  • Protection: IP20
  • Voltage: AC 220~250V
  • Frequency: 50Hz
  • Current: 290mA

ParametersAdd to Compare
Power (W)
24
Luminous flux (lm)
2016
Light temperature (K)
4200
IP coverage
20
Power supply
220~250V
Color
Brown
Mounting hole
281 mm
Dimensions
296x14,5 mm
Surface
Dim
Material
Aluminium
Luminaire type
Panel
Face
Ring
Motion sensor
No
Method of installation
ceiling
Mark
Trixline
