TR-147 LED panel 18W 1512lm 4200K wood decor - circular built-in Trixline

Outer dimension of the light: ø220x14.5mm / Mounting hole: ø205mm... more
Description and parameters

TR-147 LED panel 18W 1512lm 4200K wood decor - circular built-in Trixline

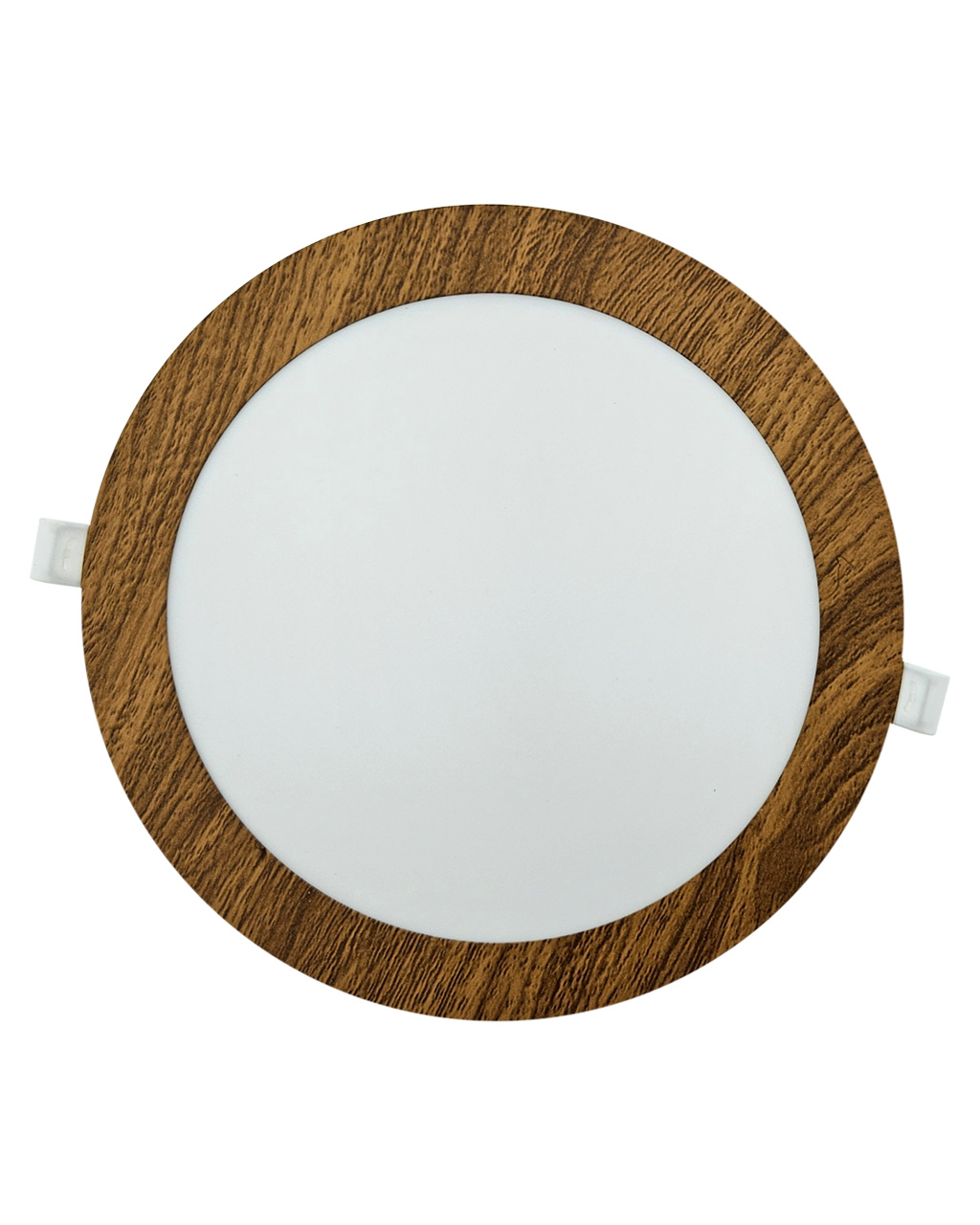

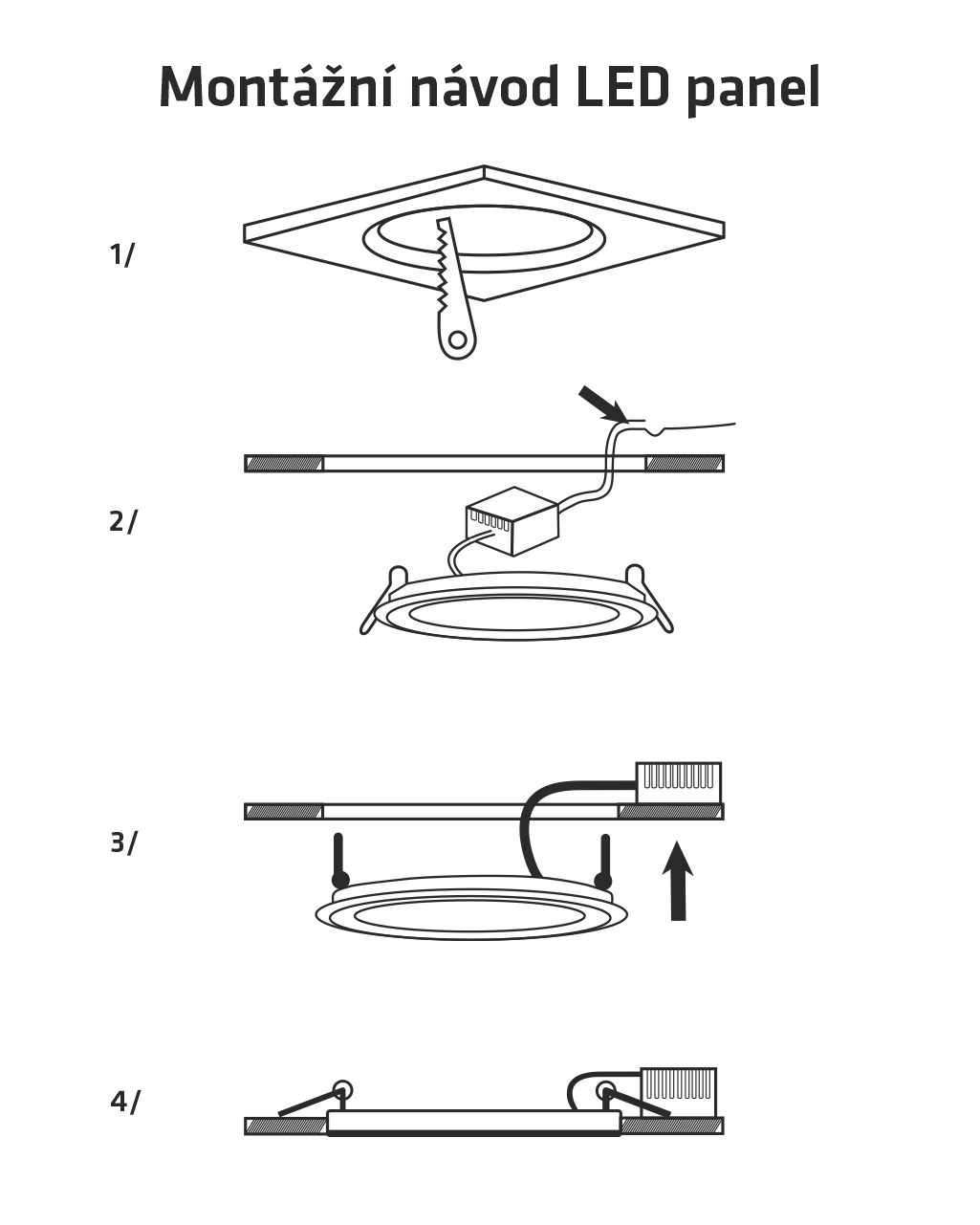

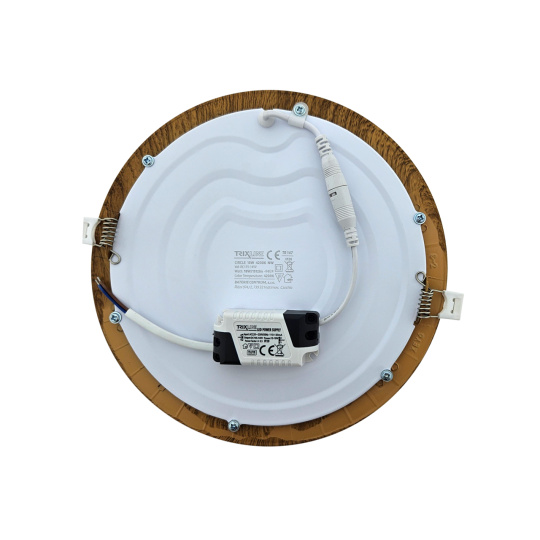

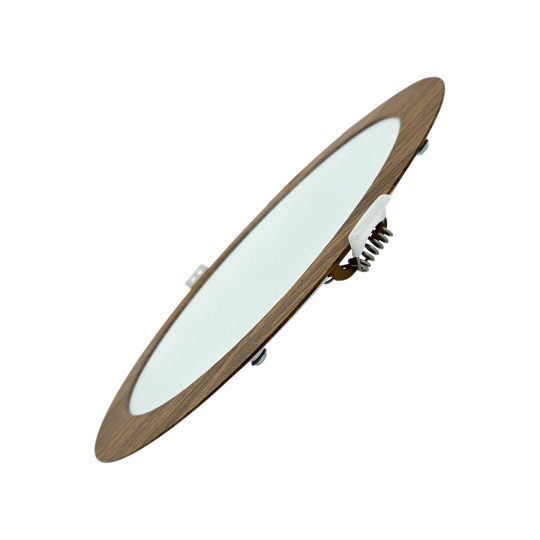

Circular built-in LED panel Trixline TR-147 with a power of 18W with a luminous flux of 1512lm and a neutral white light color of 4200K.Impressive design in wood decor.The panel is made of high-quality aluminum.Thanks to the LED technology used , you can save up to 85% of energy.It is intended for interior use to be embedded in plasterboard with a mounting hole of 20.5 cm in diameter.The outer dimension of the light is ø22x1.45cm.Quick and easy installation.

Key properties:

  • Power: 18W
  • Luminous flux: 1512lm
  • Light temperature: 4200K (neutral white)
  • Material: aluminum (Aluminium)
  • Shape: circular (circle slim)

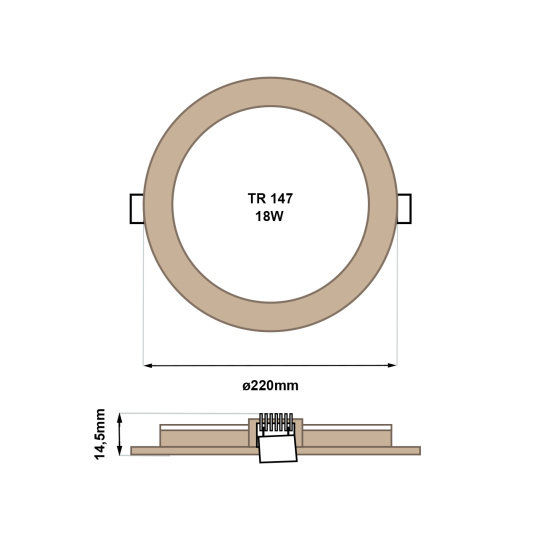

  • Outer dimension of light: ø220x14.5mm
  • Mounting hole: ø205mm (øR -15mm)
  • Mounting method: built-in
  • Color: brown (wood decor)
  • Radiation angle: 120°
  • Color rendering index: Ra ≥80
  • Service life: 50,000h (≤15,000h ON-OFF)
  • Protection: IP20
  • Voltage: AC 220~250V
  • Frequency: 50Hz
  • Current: 115mA

ParametersAdd to Compare
Power (W)
18
Luminous flux (lm)
1512
Light temperature (K)
4200
IP coverage
20
Power supply
220~250V
Color
Brown
Mounting hole
205 mm
Dimensions
220x14,5 mm
Surface
Dim
Material
Aluminium
Luminaire type
Panel
Face
Ring
Motion sensor
No
Method of installation
ceiling
Mark
Trixline
